Customer Images
Share your images and get a
free gpscity.com t-shirt!
|
Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$62.89 |
| Our Price: |
$54.95 |
| You Save: |
$7.94 (13%) |
Availability: |
In Stock.
Ships tomorrow, May 29. |
|
| |
| Model: |
RAM Mount Magellan eXplorist Series Vehicle Floor Mount |
| Part No: |
RAM-B-316-1-MA5U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,627 views) |
RAM AMPS Hole Pattern: Explained
(8,035 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views) |
RAM Vehicle RAM-POD Mounting Base: Overview (RAM-316-1A)
(2,504 views) |
Check out our
channel. |
|
What's Included In The Box? |
The RAM Mount Magellan eXplorist Series Vehicle Floor Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-316-1-MA5U |
SKU: |
RAMB316-1MA5 |
UPC: |
|
| Announced: |
January 1, 2007 |
First Shipped: |
January 1, 2007 |
Weight: |
1.207 lbs. |
Manufacturer Description |

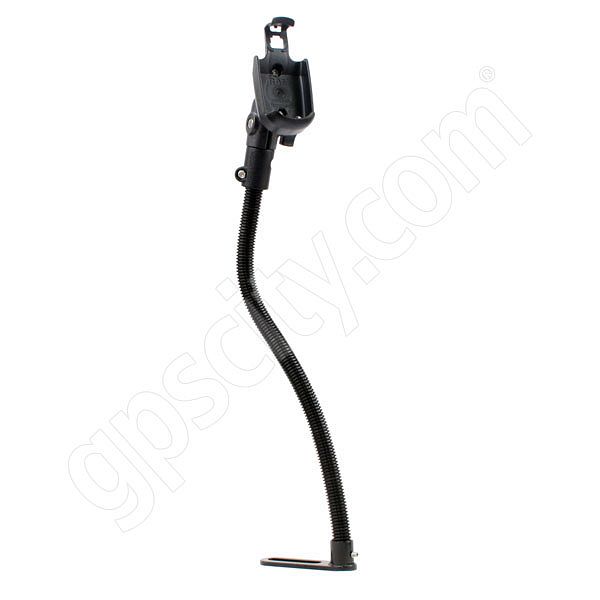

The RAM-B-316-1-MA5 RAM-POD-I Vehicle Floor Mount consists of a RAM 1 inch diameter RAM ball and socket system on a 18 inch long Aluminum Rigid Flexible Rod with a RAM Plastic Cradle for the Magellan eXplorist Series (excluding the eXplorist XL which reqires the RAM-B-174-GA6).
The Magellan eXplorist XL, WILL NOT fit this cradle. This unit requires the RAM Mount Vehicle Floor Mount for the eXplorist XL (RAM-B-316-1-MA6).
Magellan GPS Mount Cradle Design:
 The RAM-HOL-MA5 RAM Mount High Strength Plastic Cradle is designed to hold the Magellan eXplorist Series, including the following GPS units,
- Magellan eXplorist 100
- Magellan eXplorist 200
- Magellan eXplorist 210
- Magellan eXplorist 300
- Magellan eXplorist 400
- Magellan eXplorist 500
- Magellan eXplorist 600
The Magellan eXplorist XL, WILL NOT fit this cradle. This unit require the RAM Mount Cradle for the Magellan eXplorist XL (RAM-HOL-MA6).
All cables can stay connected to the unit while in the RAM cradle.
Magellan GPS Mount Arm Design: The RAP-B-200-1 RAM Mount High Strength Plastic Single Socket Short Arm has a B Size 1 inch Ball Socket at one end, and a Female Octagon button connection at the other. The Octagon Button end will mount on the end of the Aluminum Flex Rod, allowing the 1 inch socket to hold your device cradle or plate. The side of the arm includes a tightening knob which allows you to open and close the socket end.
Magellan GPS Mount Base Design: The RAM-316-1A RAM Mount Rigid Arm Base consists of a RAM octagon at the end of a 18 inch rigid flex arm with seat rail base. The RAM-POD-I mounting foot plate base is designed to connect to a vehicle seat rail bolt in your Car, Truck, SUV, RV, Big Rig or bolted location. Connected at right angles to the mounting foot is an 18 inch long Aluminum Flexible Rod. This rod can hold light to medium weight items in your vehicle safely and securely. At the top of the rigid flex rod is a male RAM High Strength Plastic Octagon Button that will connect directly to a RAM Female Octagon Button Arm.
Movement of the Rigid 18 inch Flex Arm:It is important to note that the rigid 18 inch flex arm found on this mount is designed to hold an approximate weight of up to 4 lbs. With this in mind, the aluminum rod is more rigid than flexible. It is designed to be bent into position when being installed and then hold it's position. This means you cannot move the mount around once installed with just one hand.
|
