Additional Images
Customer Images
Share your images and get a
free gpscity.com t-shirt!
|
Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$62.24 |
| Our Price: |
$53.95 |
| You Save: |
$8.29 (13%) |
Availability: |
Ships by Friday, June 7, 2013. |
| | |
| Model: |
RAM Mount Meridian Series Yoke Extension Mount |
| Part No: |
RAM-B-125-MA2U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get a Quick Price Match for this item (during business hours). |
|
Tutorial Videos |
| We have 4 videos for this item. We handcraft videos daily to help you learn more about the functionality of the items we sell. View a list of the GPS City videos. Visit our Youtube channel. Suggest a video via our feedback form. |
|
Questions and Answers (Q&As) |
Got a question about the RAM Mount Meridian Series Yoke Extension Mount? Click this link to enter your question. No login required. Our tech staff moderates this Q&A and will typically respond within 24 hours (72 hours if a weekend). Visitors are also welcome to chime in at your convenience.
|
There are currently no Q&A's posted for this item. Feel free to post a question you have about this item. |
|
Sub-Component Breakdown |
| Here are the sub-component parts that make up the Meridian Series Yoke Extension Mount: |
|
|
What's Included In The Box? |
| The RAM Mount Meridian Series Yoke Extension Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-125-MA2U |
SKU: |
RAMB125MA2 |
UPC: |
|
| Announced: |
November 30, 1999 |
First Shipped: |
January 7, 2002 |
Weight: |
1.100 lbs. |
Gallery of Customer Images |
| Customer submitted images of the RAM Mount Meridian Series Yoke Extension Mount in action. You can also view our entire gallery or add your own gallery item. Special limited time offer - get a free t-shirt with every approved submission with pictures. |
There are currently no gallery items for the RAM Mount Meridian Series Yoke Extension Mount. |
|
Customer Reviews |
| View all reviews. Or click here to Add Your Own Review. It's quick and easy. No login required. |
|
There are currently no reviews for the RAM Mount Meridian Series Yoke Extension Mount.
|
Alternative Models |
RAM Mount Magellan Meridian Yoke Mount RAM-B-121-MA2U |
RAM Mount Meridian Series Yoke Extension Mount | | | | |
|
Manufacturer Description |

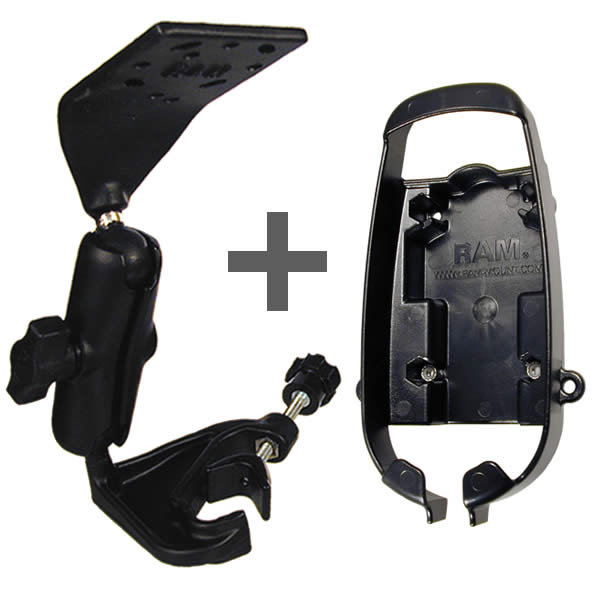

The RAM Marine Grade Aluminum Yoke Mount, with Extension Plate, consists of the 1" dia. ball and socket system with RAM Plastic Cradle for the Magellan Meridian Series.
BASE DESIGN:
The Powder Coated Marine Grade Aluminum Yoke Clamp Mount Base fits a rail diameter from 5/8 inches to a maximum of 1 1/4 inches. The 1 inches rubber ball is at a right angle to the plane of the mount so when connected to a rail, the ball sits parallel to the rail.
To mount the base, simply place the yoke clamps around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes and unusual shaped motorbike rails.
Note: The rail does not need to be perfectly round to mount this base.
Extension plate DesignThe RAM Powder Coated Marine Grade Aluminum Extension Plate with 1 inch Rubber Ball allows you to maneuver your GPS unit, or any connected device, in more positions than the standard mounting plate. Originally designed to position your GPS in front of the yoke on your plane, the extension plate can also be used in many other applications.
The connection section of the plate is 2.5 inch square with predrilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The connection section extends approximately 2.25 inches forward, at a 45 degree angle, from the center of the 1" ball and approximately 1.5 inch above the 1 inch ball (to the bottom of the connection section of the plate).
ARM DESIGN:
The Powder Coated Marine Grade Aluminum Standard Length Double Socket Arm is 3.0" long when measured between socket centers.
CRADLE DESIGN:
 The RAM-HOL-MA2 RAM Mount High Strength Plastic Cradle is designed to hold the Magellan Meridian Series, including the following GPS units,
- Magellan Meridian GPS
- Magellan Meridian Gold
- Magellan Meridian Marine
- Magellan Meridian Platinum
- Magellan Meridian Color
All cables can stay connected to the unit while in the RAM cradle.
|
Specifications |
There are no specifications currently available for this item. |
|
|
