RAM Mount Motion Computing Motion C5 F5 Vehicle Floor Mount Product Detail
Call us at 1-866-GPS-CITY (1-866-477-2489) from 8AM - 5PM PST, Mon-Fri
What's Included With The RAM Mount Motion Computing Motion C5 F5 Vehicle Floor Mount? The RAM Mount Motion Computing Motion C5 F5 Vehicle Floor Mount ships with the following items included:

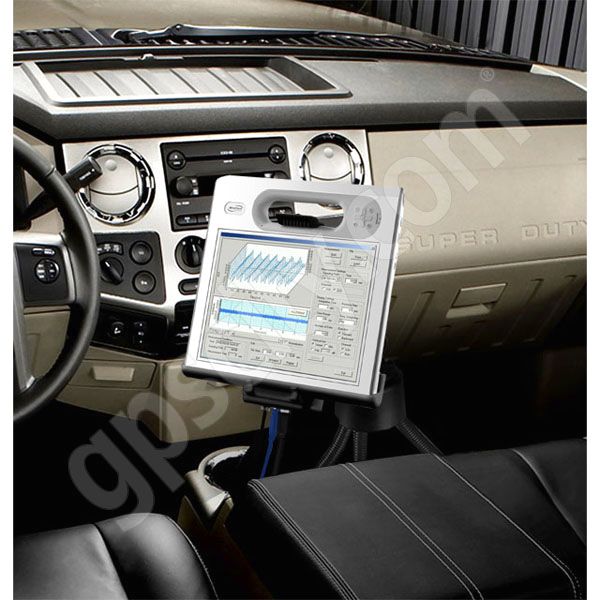

RAM Mount Motion Computing Motion C5 F5 Vehicle Floor Mount Description The RAM-316-3-MOT9 Motion Computing Motion C5 and Motion F5 Tablet PC Series Universal Vehicle Floor RAM-POD Mount is a Marine Grade Aluminum with a RAM Custom Plastic Cradle. The mount is designed with a 1.5 inch diameter RAM ball and socket system that has adjustment points at the cradle and top of Aluminum Rigid Flexible Rod Tri-Pod. With a twist of the arm knob, you can move the Motion Computing Motion C5 and Motion F5 mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
Motion Computing Tablet Mount Options:
Motion Computing Tablet Mount Cradle Design:
Motion Computing Tablet Mount Cradle Plate:
The RAM-2461 Marine Grade Aluminum 75mm VESA Plate is designed to connected to the back of the mount cradle with a standard 75m VESA hole pattern. The square plate has a 1.5 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1.5 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.5 inch rubber ball location, take a closer look with the RAM-2461 Design Drawings (pdf file).
Motion Computing Tablet Mount Arm Design:
The RAM-201 RAM Mount Dual Socket Arm is a 1.5 inch C size Ball Socket Arm made of Marine Grade Aluminum. The arm is 4.63 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-201 arm, take a closer look with the RAM-201 Design Drawings (pdf file).
Motion Computing Tablet Mount Base Design:
The RAM POD III is a universal base which allows you to mount a large device like a laptop or tablet PC in your car safely and securely. The mount bolts to the seat rail bolts of the passenger seat and can be custom shaped to fit in your vehicle in the location you require.
The base consists of three different legs: 18 inches, 20 inches and 30 inches, and at right angles to the base of the legs are feet with mounting holes. To mount the RAM-POD III, simply place the two of the feet holes into the passenger seat mounting bolts and adjust the mount to the required height with the flexible legs. The third flexible leg on the RAM Pod III should also be bolted under the dash of the vehicle, to help support the mount. The rigid flexible arms will hold everything you need safely and securely.
Installation Manual::Take a look at the assembly instructions (pdf file) of the RAM POD III (RAM-316-1A).
