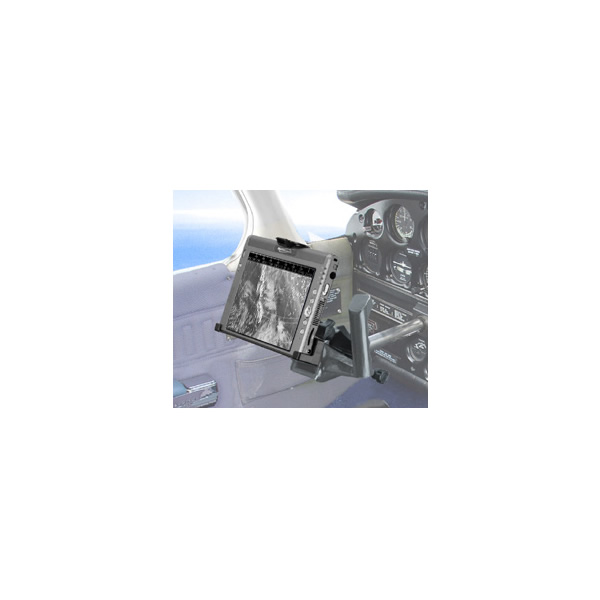

The RAM Marine Grade Aluminum Yoke Mount consists of the 1" dia. ball and socket system with RAM Plastic Cradle for the Motion Computing LS800 Tablet.
The RAM-B-121B RAM Mount Powder Coated Marine Grade Aluminum Yoke Clamp Mount Base fits a rail diameter from 5/8 inch to a maximum of 1 1/4 inches. The 1 inch rubber ball is at a right angle to the plane of the mount so when connected to a rail, the ball sits parallel to the rail. To mount the base, simply place the yoke clamps around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes and unusual shaped motorbike rails.
NOTE: The rail does not need to be perfectly round to mount this base.
The Powder Coated Marine Grade Aluminum Standard Length Double Socket Arm is 3.0" long when measured between socket centers.
The RAM-HOL-MOT3 High Strength Plastic Cradle is designed to hold the Motion Computing LS800 Tablet (8.4" Screen). All cables can stay connect to the tablet when in the cradle. To place the Motion LS800 Tablet PC Computer into the cradle, you must place the bottom of the tablet in the cradle corner supports. Next, you lay the tablet back into the top of the cradle until the top clip clicks over the top of the tablet, holding it firmly in the cradle.
