Customer Rating:   (based on 2 reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$57.48 |
| Our Price: |
$48.95 |
| You Save: |
$8.53 (15%) |
Availability: |
In Stock.
Ships today, February 14. |
|
| |
| Model: |
RAM Mount Motorcycle Brake Mount for Side Clamp PDA Devices |
| Part No: |
RAM-B-174-PD2U (also RAM-B-174-PD2) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
| Learn More with our Instructional Videos (More GPS City videos.
Visit our Youtube channel.) |
RAM Diamond Plate: Overview (RAM-B-238U)
(20,286 views) |
RAM AMPS Hole Pattern: Explained
(6,610 views) |
RAM Mount Plate: Overview (RAM-B-347)
(3,929 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(20,635 views) |
RAM Motorcycle Kit: On Suzuki Reservoir (RAM-B-309 Series)
(17,019 views) |
|
| What's Included In The Box? |
The RAM Mount Motorcycle Brake Mount for Side Clamp PDA Devices ships with the following items included: |
| Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Universal Mounts |
| Model: |
RAM-B-174-PD2U |
SKU: |
RAMB174PD2 |
UPC: |
|
| Announced: |
January 1, 2007 |
First Shipped: |
January 1, 2007 |
Weight: |
1.027 lbs. |
| RAM Mount Motorcycle Brake Mount for Side Clamp PDA Devices Description |

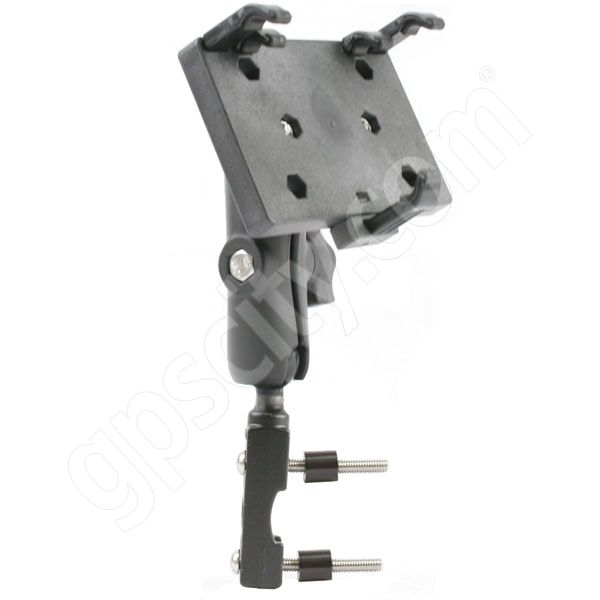

The RAM-B-174-PD2 RAM Mount Marine Grade Aluminum Motorcycle Brake/Clutch Base Mount consists of the 1 inch diameter RAM ball and socket system with RAM Universal Side Clamping Plastic Cradle for PDA Units.
Mount Cradle Design:
 The RAM-HOL-PD2 RAM Mount High Strength Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of electronic devices, like PDAs and Portable Entertainment Systems (Sony PSP).
Cradle Clamping Dimensions:
- Cradle Height Range: Open
- Cradle Holding Width: 2 7/8 - 3.5 inches
- Cradle Holding Thickness: 3/8 - 1 1/8 inches
Included with the Cradle:
The cradle includes three (3) sets of side clamping arms. Each set of arms includes three (3) individual arms which connect to the slots on the side of the cradle. The arms have a rubber tip for an optimum hold, and you can remove and change the arms so you can find the right clamping hold for you device. The arms come in three (3) different lengths:
- Short Arm Length: 1/2 inch
- Medium Arm Length: 7/8 inch
- Long Arm Length: 1 3/16 inches
Mount Arm Design:
 The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
Mount Base Design:
 The RAM-B-309-7 RAM Mount Motorcycle Kit Base can mount to either the clutch/ brake reservoir or directly to a round handle bar rail. The base is constructed of marine grade aluminum with an integrated 1 inch diameter rubber ball, hardware for rail mounting and both standard and metric mounting bolts for motorcycle reservoir mounting. The zinc coated metal u-bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 1/2 to 1.25 inches.
The base connects to the left or right side of your handlebar clutch/brake reservoir on the Honda Goldwing and other select motorcycles or you can connect directly to your handlebars with the u-bolt hardware. To see if this base will work with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94 inches and a maximum of 1.58 inches.
|
