Additional Images
Customer Images
Share your images and get a
free gpscity.com t-shirt!
|
Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$76.33 |
| Our Price: |
$59.95 |
| You Save: |
$16.38 (21%) |
Availability: |
In Stock.
Ships tomorrow, May 29. |
|
| |
| Model: |
RAM Mount Motorola Xoom Vehicle Mount RAM-B-316-1-MOTO3U |
| Part No: |
RAM-B-316-1-MOTO3 (also RAM-B-316-1-MOTO3U) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Rectangular Plate: Comparison Overview
(2,142 views) |
RAM Round Plate: Overview (RAM-B-202U)
(8,293 views) |
RAM AMPS Hole Pattern: Explained
(8,035 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views) |
RAM Vehicle RAM-POD Mounting Base: Overview (RAM-316-1A)
(2,504 views) |
|
What's Included In The Box? |
The RAM Mount Motorola Xoom Vehicle Mount RAM-B-316-1-MOTO3U ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Tablet Mounts |
| Model: |
RAM-B-316-1-MOTO3 |
SKU: |
RAMB316-1MOTO3 |
UPC: |
|
| Announced: |
May 9, 2011 |
First Shipped: |
November 25, 2011 |
Weight: |
1.719 lbs. |
Manufacturer Description |

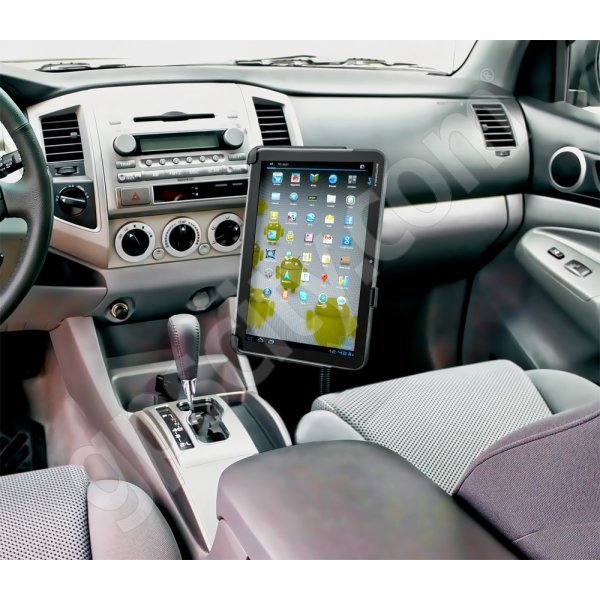

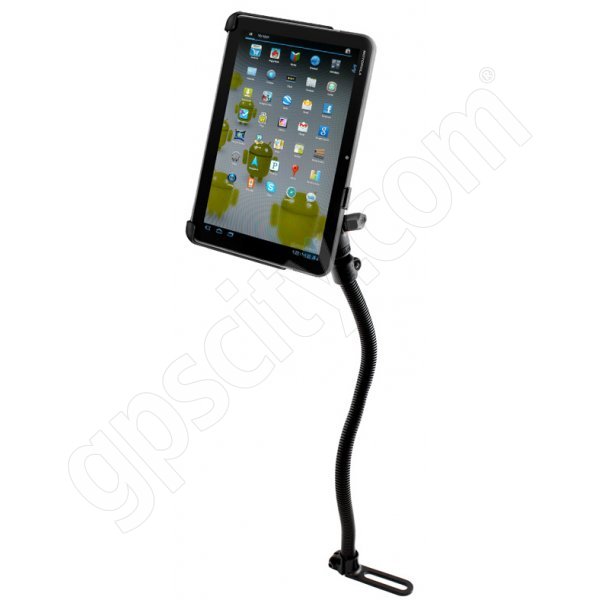

The RAM-B-316-1-MOTO3 Motorola Xoom Flex Rod Vehicle Floor RAM-POD-I Mount is a Marine Grade Aluminum and Plastic Composite Mount with a RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter RAM ball and socket system on a 18 inch long Aluminum Rigid Flex Rod. With a twist of the arm knob, you can move the top of Motorola Xoom mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
Motorola Xoom Mount Options:
Motorola Xoom Cradle Design:
Motorola Xoom Cradle Plate:
 The RAM-B-202 RAM Mount Marine Grade Aluminum Round Plate is designed to connected to the back of cradles with an AMPS hole pattern. The round plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Motorola Xoom Mount Arm Design: The RAP-B-200-1 RAM Mount High Strength Plastic Single Socket Short Arm has a B Size 1 inch Ball Socket at one end, and a Female Octagon button connection at the other. The Octagon Button end will mount on the end of the Aluminum Flex Rod, allowing the 1 inch socket to hold your device cradle or plate. The side of the arm includes a tightening knob which allows you to open and close the socket end.
Motorola Xoom Mount Base Design: The RAM-316-1A RAM Mount Rigid Arm Base consists of a RAM octagon at the end of a 18 inch rigid flex arm with seat rail base. The RAM-POD-I mounting foot plate base is designed to connect to a vehicle seat rail bolt in your Car, Truck, SUV, RV, Big Rig or bolted location. Connected at right angles to the mounting foot is an 18 inch long Aluminum Flexible Rod. This rod can hold light to medium weight items in your vehicle safely and securely. At the top of the rigid flex rod is a male RAM High Strength Plastic Octagon Button that will connect directly to a RAM Female Octagon Button Arm.
Movement of the Rigid 18 inch Flex Arm:It is important to note that the rigid 18 inch flex arm found on this mount is designed to hold an approximate weight of up to 4 lbs. With this in mind, the aluminum rod is more rigid than flexible. It is designed to be bent into position when being installed and then hold it's position. This means you cannot move the mount around once installed with just one hand.
|
Features & Tips |
Here is a listing we have put together of some of the common Motorola Xoom Vehicle Mount RAM-B-316-1-MOTO3U features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Motorola Xoom.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum with Aluminum Rod and High Strength Composite Plastic.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Single 1 inch Socket and Single Octagon Button Socket.
- Arm Length: Short length of 1.75 inches between socket center and edge.
- Post Length: 18 inch Aluminum Rod.
- Base Type: Vehicle Floor Mount to be bolted into existing seat railing.
- Common Applications:
- Vehicle Mounts: Attaching to passengers seat rail bolt.
|
