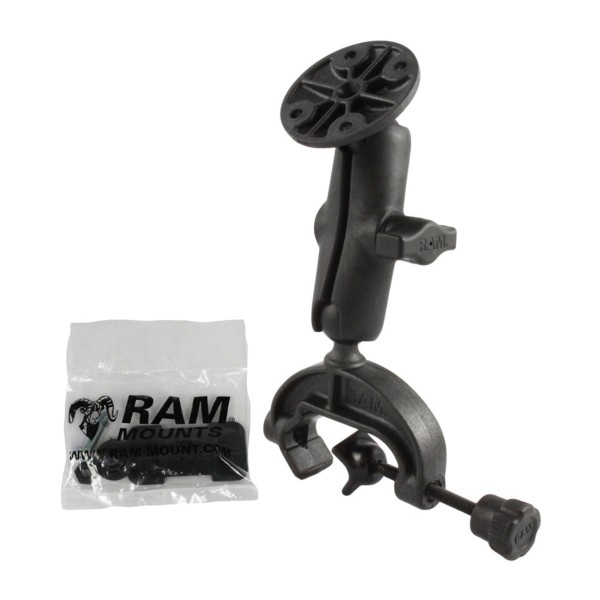

RAM Mount RAP-B-121U Plastic Clamp Base with Standard Arm and Round Plate


RAM Mount Plastic Clamp Base with Round Plate
Customer Images
Share your images and get a
free gpscity.com t-shirt!
Not yet rated.    Email:  Email the RAM Mount Plastic Clamp Base with Round Plate page     Print:  Print the RAM Mount Plastic Clamp Base with Round Plate page
See more RAM Mount items.

List Price: $33.18
Our Price: $27.95 (and this item ships for $3.49)
You Save: $5.23 (16%)

Availability:

In Stock.
Ships tomorrow, May 29.


Qty:

Q&A: 1 Questions + 1 Answers
Model: RAM Mount Plastic Clamp Base with Round Plate
Part No: RAP-B-121U (also RAP-B-121)
Condition: Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses)
Price Match: Get an Instant Price Match in about 5 minutes (during business hours).

Learn More with our Instructional Videos

 » See our list of GPS City videos. Visit our Youtube channel.
RAM Mount Plate: Overview (RAM-B-347) Video
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views)
RAM AMPS Hole Pattern: Explained Video
RAM AMPS Hole Pattern: Explained
(8,035 views)
RAM Medium Arm: Overview (RAP-B-201) Video
RAM Medium Arm: Overview (RAP-B-201)
(1,894 views)

Check out our

channel.


RAM Mount Sub-Component Breakdown

Here are the sub-component parts that make up this item:

Plastic Round Base with 1 inch Ball RAP-B-202U
+
Plastic Medium Arm B-Socket RAP-B-201U
+
Plastic Clamp Base with 1 inch Ball RAP-B-121BU


What's Included In The Box?

The RAM Mount Plastic Clamp Base with Round Plate ships with the following items included:


Product Information

Manufacturer: National Products, Inc Category: All Purpose Mounts Type: Plate Mounts
Model: RAP-B-121U SKU: RAPB121 UPC: 793442801327
Announced: April 11, 2008 First Shipped: April 11, 2008 Weight: 0.620 lbs.

Manufacturer Description

The RAP-B-121 Universal Clamp Base RAM Mount is a High Strength Composite Plastic Mount with a AMPS hole Round 2.5 inch diameter Plate End. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle plate and base. With a twist of the arm knob, you can move the universal clamp base mount to your optimum viewing position. This system is a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the 2.5 inch diameter plate will connect to a large variety of third party cradles and mounts.

Note: This mount does not require any drilling for installation.

Universal Mount End Plate Design:

The RAP-B-202 RAM Mount High Strength Plastic Universal Plate has a 1.0 inch diameter rubber ball connected at right angles to a 2.5 inch diameter round plate. The plate has 4 holes that match the universal industry standard AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings pdf file (Note: the Plastic RAP-B-202 Plate only has the AMPS square four hole pattern).

Note: This base plate will attach to any of the RAM plastic HOL holders, but generally the RAP-B-238 Diamond Plate is used.

Universal Mount Arm Design:

The RAP-B-201 RAM Mount Dual Socket Arm is a 1 inch B size Ball Dual Socket Arm made of High Strength Plastic. The arm is 3.0 inches long between socket centers. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAP-B-201 arm, take a closer look with the RAM-B-201 Aluminum Arm Design Drawings (pdf file).

Universal Mount Base Design:


The RAP-B-121B RAM Mount High Strength Plastic Universal Clamp Mount Base fits a rail or edge lip from 5/8'' to a maximum of 1 1/4''. The mounting base can also accept a second ball giving you the ultimate double ball base.

To mount the base, simply place the clamp ends around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes, golf buggies or unusual shaped motorbike rails.

Note: The rail does not need to be perfectly round to mount this base.


Features & Tips

Here is a listing we have put together of some of the common

Plastic Clamp Base with Round Plate features

, along with a few user tips that you may find of help for this particular item.
  • Warranty: Manufacturer's Life Time Warranty.
  • End Plate Design: Round 2.5 inch diameter Plate with AMPS hole pattern.
  • End Plate Material: Black High Strength Composite Plastic.
  • Mount Material: Black High Strength Composite Plastic.
  • Mount Ball Size: RAM 1 inch Solid Rubber Ball.
  • Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
  • Arm Type: RAM Arm with Dual 1 inch Sockets.
  • Arm Length: Standard length of 3 inches between socket centers.
  • Base Type: Plastic Temporary Clamp Base for widths between 0.63 and 1.25 inch.
  • Common Applications:
    • Golf Buggy Mounts: Attaching to the golf buggy frame work.
    • General Mounts: Attaching to available pipes or poles.
