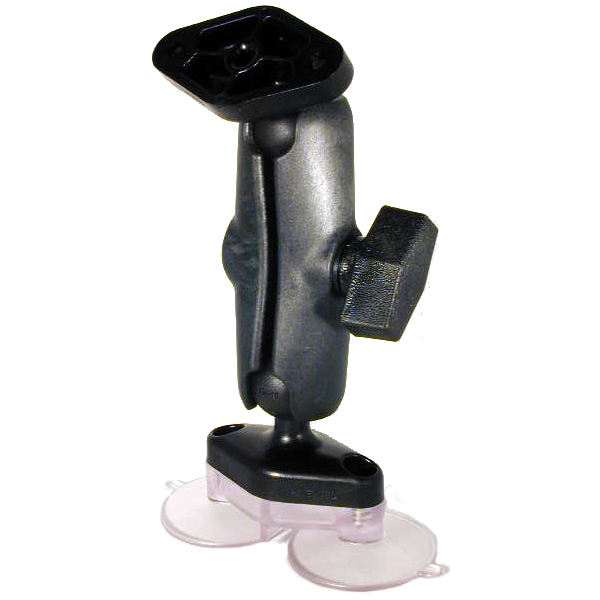

The RAM High Strength Plastic Mount with Double Suction Base consists of the 1" dia. ball and socket system with RAM Universal Diamond Plate. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the Diamond Plate will connect to a large variety of third party cradles and mounts.
The Light Weight double 1.75" Rubber Suction Cup Base has a standard RAM double hole diamond plate end. The suction cup is designed to have an light to medium hold on any smooth non-porous surface, but for best result, mount the suction cup on a glass surface.
The diamond plate end has two holes 1.912" from ceneter to center. This will connect to the RAM 238 Diamond Plates Series, to the universal industry standard AMPS hole pattern or directly to the back of the RAM Plastic HOL Cradles.
The High Strength Plastic Standard Length Double Socket Arm is 3.0" long when measured between socket centers.
END PLATE DESIGN:
The RAP-B-238 RAM Mount High Strength Plastic Composite Universal Plate has a 1.0 inch diameter rubber ball connected at right angles to a 1 1/4 x 2 1/2 inch Diamond Plate. The plate has two holes positioned at either tip of the diamond plate. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file) (Note: the Plastic RAP-B-238 Plate is thicker than the RAM-B-238 Design Drawings shown).
LOCKING SUCTION CUP ALTERNATIVE:
