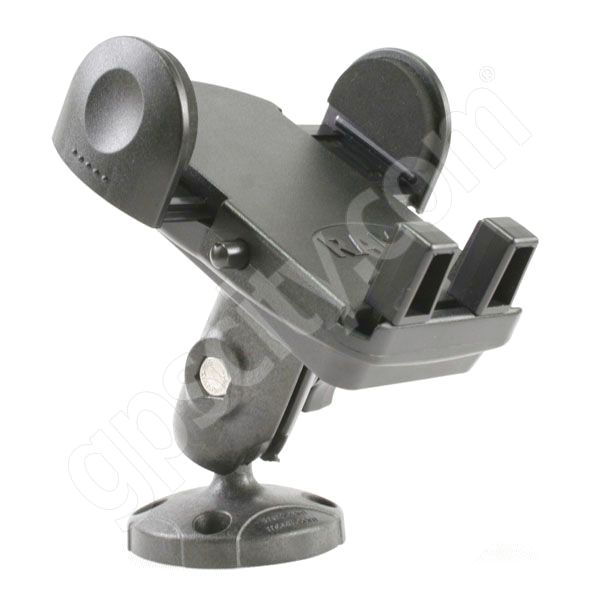

The RAM High Strength SHORT Plastic Dash Mount consists of the 1" dia. ball and socket with button system and RAM Universal Medium Side Clamping Plastic Cradle.
BASE DESIGN:
 The RAP-B-202 RAM Mount High Strength Plastic Universal Plate has a 1.0 inch diameter rubber ball connected at right angles to a 2.5 inch diameter round plate. The plate has 4 holes that match the universal industry standard AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings pdf file (Note: the Plastic RAP-B-202 Plate only has the AMPS square four hole pattern).
Note: This base plate will attach to any of the RAM plastic HOL holders, but generally the RAP-B-238 Diamond Plate is used.
ARM DESIGN:
The High Strength Plastic SHORT Length Single Socket Arm is 1.75" long when measured from socket center to button socket end.
CRADLE DESIGN:
 The RAM-HOL-UN2 Medium RAM Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices.
Using the Cradle:
This cradle has padded locking side clamps that close tightly on the item you want to hold. To release the clamp hold, simply press the button found at the bottom of the back of the cradle which will spring the clamps open. At the base of the cradle is a small support to hold the bottom of the item securely in the cradle. This RAM universal side clamping cradle is designed to be used in a closed cabin, low vibration environment. This system is not recommended as a motorcycle mount.
Universal Cradle Dimensions:
- Minimum Grip Width: 1.5"
- Maximum Grip Width: 2.6"
- Side Clamp Height: 1.88"
- Side Clamp Depth: 1.13"
- Cradle Spine Height: 3.68"
- Cradle Spine Width: 2.0"
NOTE: The top of the cradle is open, so the items in the cradle can be larger than the height of the cradle.
|
