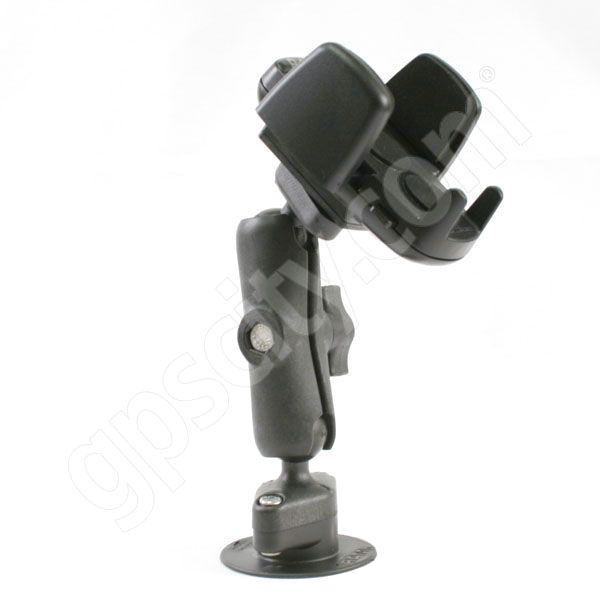

The RAM High Strength Plastic Adhesive Mount consists of the 1" dia. ball and socket system with RAM Universal Small Side Clamping Plastic Cradle.
BASE DESIGN:
 The RAP-273 RAM Mount High Strength Plastic Adhesive Mount Base is designed to have a semi-permanent hold on a flat or curved surface, like a car dash or car windshield. The mounting base consists of a 2.5 inch diameter flexible base with a RAM Mount RAM-202PSA Adhesive PSA (Pressure Sensitive Adhesive) Disk.
ARM DESIGN:
The High Strength Plastic Standard Length Double Socket Arm is 3.0" long when measured between socket centers.
CRADLE DESIGN:
 The RAM-HOL-UN1 Small RAM Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices.
Using the Cradle:
This cradle has padded locking side clamps that close tightly on the item you want to hold. To release the clamp hold, simply press the button found at the bottom left side of the cradle which will spring the clamps open. At the base of the cradle are two small supports to hold the bottom of the item securely in the cradle. This RAM universal side clamping cradle is designed to be used in a closed cabin, low vibration environment. This system is not recommended as a motorcycle mount.
Universal Cradle Dimensions:
- Minimum Grip Width: 1.5"
- Maximum Grip Width: 2.6"
- Side Clamp Height: 1.88"
- Side Clamp Depth: 1.13"
- Cradle Spine Height: 3.68"
- Cradle Spine Width: 2.0"
NOTE: The top of the cradle is open, so the items in the cradle can be larger than the height of the cradle.
|
