See more RAM Mount items. |
| |
| List Price: |
$30.10 |
| Our Price: |
$25.95 (and this item ships for $2.99) |
| You Save: |
$4.15 (14%) |
Availability: |
In Stock.
Ships today, February 15. |
|
| |
| Model: |
RAM Mount Rino 5xx Series Open Socket Arm System |
| Part No: |
RAM-B-103-GA20U (also RAM-B-103-GA20) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
| Learn More with our Instructional Videos (More GPS City videos.
Visit our Youtube channel.) |
RAM Garmin Rino 500 Cradle: In Use (RAM-HOL-GA20)
(1,678 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(20,301 views) |
RAM AMPS Hole Pattern: Explained
(6,618 views) |
RAM Mount Plate: Overview (RAM-B-347)
(3,933 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(20,647 views) |
|
| Most Popular RAM Mount Rino 5xx Series Open Socket Arm System Accessories
(View all accessories.) |
RAM Mount Plastic Wedge 1 inch Ball Base Scotty Hobie Kayaks
$10.95
|
RAM Mount Round Plate with 1 inch Ball RAM-B-202U
$6.10
|
RAM Mount Locking Suction Cup with 1.0 inch Ball Metal Plate
$13.95
|
RAM Mount Motorcycle Fork Stem Base with 1 inch Ball
$13.95
|
RAM Mount Yoke Clamp Base with 1 inch Ball
$21.95
|
|
| What's Included In The Box? |
The RAM Mount Rino 5xx Series Open Socket Arm System ships with the following items included: |
| Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-103-GA20U |
SKU: |
RAMB103GA20 |
UPC: |
|
| Announced: |
May 1, 2008 |
First Shipped: |
May 1, 2008 |
Weight: |
0.500 lbs. |
| RAM Mount Rino 5xx Series Open Socket Arm System Description |

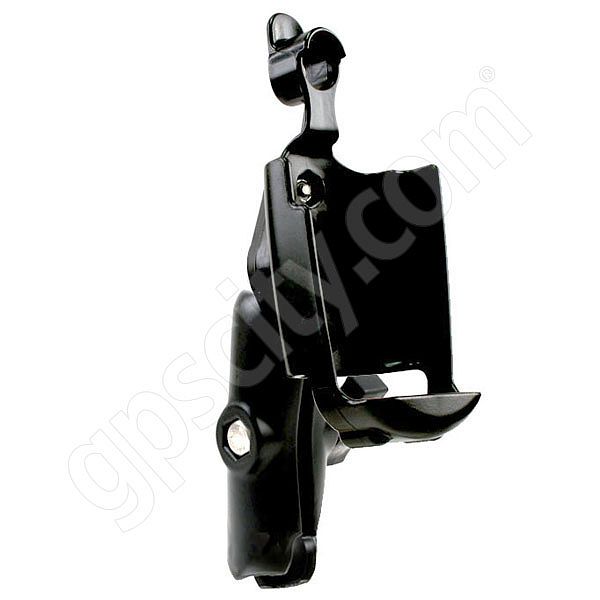

The RAM-B-103-GA20 Garmin Rino 5xx Series RAM Mount is a Marine Grade Aluminum System with an open 1 inch socket end and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment points at the cradle and base open socket end. Once a base is connected, a simple twist of the arm knob, allows you to move the Garmin Rino 5xx series mount, including Rino 520 and Rino 530, to your optimum viewing position.
Note:This mount does not include a mount base.
Garmin GPS Mount Options:
To help ensure you have the Garmin Rino 500 Series Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA20 Series of Garmin Rino 500 series Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA20 Garmin Rino 500 Series Cradle.
Garmin GPS Mount Cradle Design:
The RAM-HOL-GA20 RAM Mount High Strength Plastic Cradle is designed to hold the Garmin Rino 5xx Series, including the following units,
- Garmin Rino 520 Series
- Garmin Rino 530 Series
- Garmin Rino 520 HCx Series
- Garmin Rino 530 HCx Series
The Garmin Rino 1xx Series, including the Rino 110, Rino 120 and Rino 130, WILL NOT fit this cradle. These units require the RAM-HOL-GA8 RAM Mount Cradle for the Garmin Rino 1xx Series.
NOTE: You cannot connect any power cables to the Garmin Rino 5xx series while the unit is in the RAM Mount cradle. The Rino 5xx external power connector plug, required to connect a power plug, will not attach to the back of the Rino unit when in the RAM Mount cradle.
Garmin GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Garmin GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Garmin GPS Mount Base Design:The bottom base end of the RAM mounting system has an open 1 inch diameter socket. This end allows you to connect any RAM component base with a RAM 1 inch (B Size) Solid Rubber Ball. This mount is not complete without the extra part for the open socket end. Mounting base options include:
|
| RAM Mount Rino 5xx Series Open Socket Arm System Features & Tips |
Here is a listing we have put together of some of the common Rino 5xx Series Open Socket Arm System features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Garmin Rino 5xx Series.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Does not include a base. The system ends with an open 1 inch socket .
- Common Applications:
- General Mounting: This mount is used to begin a BYO mount. simply purchase a RAM base component with a 1 inch ball.
|
