Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$56.02 |
| Our Price: |
$46.95 |
| You Save: |
$9.07 (16%) |
Availability: |
In Stock.
Ships tomorrow, May 29. |
|
| |
| Model: |
RAM Mount Roadmate Series Yoke Extension Mount |
| Part No: |
RAM-B-125-MA4U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Medium Arm: Overview (RAM-B-201U)
(21,942 views) |
RAM Clamp Mount Base with B-Ball (RAM-B-121BU)
(2,125 views) |
Check out our
channel. | | |
|
What's Included In The Box? |
The RAM Mount Roadmate Series Yoke Extension Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-125-MA4U |
SKU: |
RAMB125MA4 |
UPC: |
|
| Announced: |
November 30, 1999 |
First Shipped: |
April 13, 2004 |
Weight: |
0.907 lbs. |
Manufacturer Description |

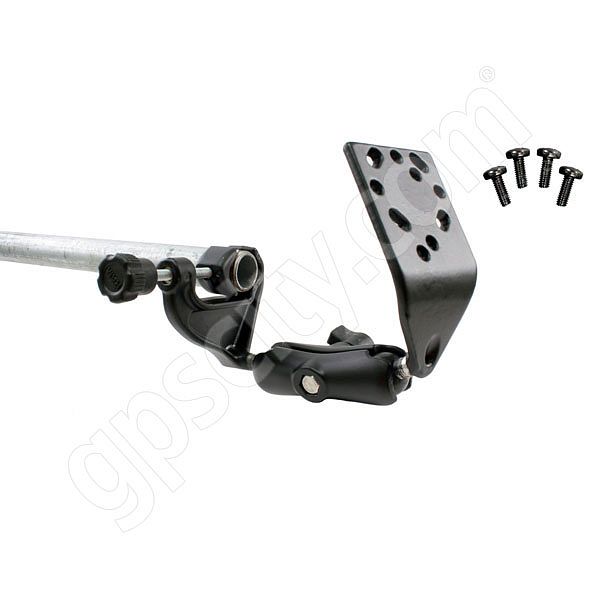

The RAM-B-125-MA4 RAM Mount Marine Grade Aluminum Yoke Mount, with Extension Plate, consists of the 1'' dia. ball and socket system with RAM Plate and Mounting Hardware to connect to the Magellan Roadmate Cradle. The cradle may be included with the purchase of your Roadmate, or you can purchase a second cradle if required.
Mount Cradle Design:
The RAM-B-125B-MA4 Aluminum Extension Plate has a hole pattern which will connect to the diagonal holes found on the back of the following cradles made by Magellan:
Note: The Magellan cradles listed are included with the purchase of each GPS unit, or can purchased separately.
Extension Plate Design
The RAM Powder Coated Marine Grade Aluminum Extension Plate with 1'' Rubber Ball allows you to maneuver your GPS unit, or any connected device, in more positions than the standard mounting plate. Originally designed to position your GPS in front of the yoke on your plane, the extension plate can also be used in many other applications.
The connection section of the plate is 2.5'' square with predrilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The connection section extends approximately 2.25'' forward, at a 45 degree angle, from the center of the 1'' ball and approximately 1.5'' above the 1'' ball (to the bottom of the connection section of the plate).
Connection Hardware Included:
The plate includes a set of two screws to connect the plate to the back of the Roadmate cradle.
Mount Arm Design:
The RAM-B-201 Marine Grade Aluminum Dual Socket Arm has Dual B Size 1 inch Ball Sockets. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
Mount Base Design:
 The RAM-B-121B RAM Mount Powder Coated Marine Grade Aluminum Yoke Clamp Mount Base fits a rail diameter from 5/8 inch to a maximum of 1 1/4 inches. The 1 inch rubber ball is at a right angle to the plane of the mount so when connected to a rail, the ball sits parallel to the rail. To mount the base, simply place the yoke clamps around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes and unusual shaped motorbike rails.
NOTE: The rail does not need to be perfectly round to mount this base.
|
