| List Price: |
$72.22 |
| Our Price: |
$54.95 |
| You Save: |
$17.27 (24%) |
Availability: |
Ships by Friday, June 8, 2012. |
|
| |
| Model: |
RAM Mount Samsung Galaxy Tab 10.1 Clamp Mount RAM-B-121-SAM5U |
| Part No: |
RAM-B-121-SAM5U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Rectangular Plate: Comparison Overview
(2,142 views) |
RAM Round Plate: Overview (RAM-B-202U)
(8,293 views) |
RAM AMPS Hole Pattern: Explained
(8,035 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,942 views) |
|
What's Included In The Box? |
The RAM Mount Samsung Galaxy Tab 10.1 Clamp Mount RAM-B-121-SAM5U ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Tablet Mounts |
| Model: |
RAM-B-121-SAM5U |
SKU: |
RAMB121SAM5 |
UPC: |
|
| Announced: |
July 24, 2011 |
First Shipped: |
December 14, 2011 |
Weight: |
1.375 lbs. |
RAM Mount Samsung Galaxy Tab 10.1 Clamp Mount RAM-B-121-SAM5U Alternative Models |
RAM Mount Apple iPod classic Yoke Aviation Mount |
RAM Mount Apple iPod classic Yoke Extension Aviation Mount | | | | |
|
Manufacturer Description |

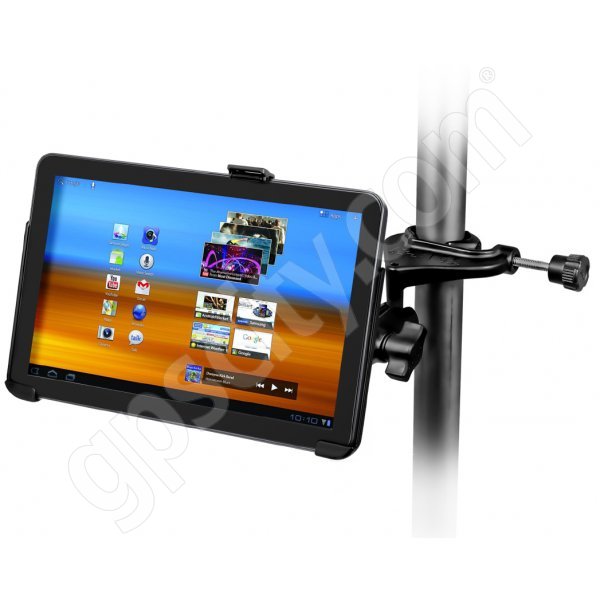

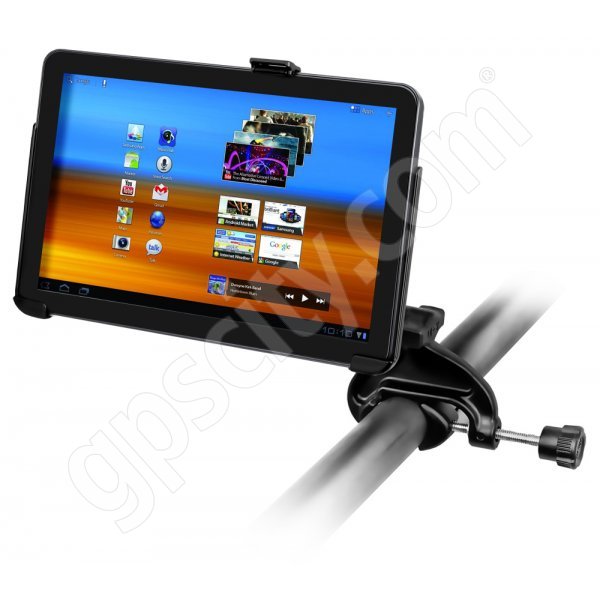

The RAM-B-121-SAM5 Samsung Galaxy Tab 10.1 (10.1 inch Screen) Yoke Clamping Aviation RAM Mount is a Marine Grade Aluminum Mount with a Temporary Clamp Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Samsung Galaxy Tab 10.1 mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
Samsung Galaxy Tab 10.1 Mount Options:
Samsung Galaxy Tab 10.1 Mount Cradle Design:
Samsung Galaxy Tab 10.1 Mount Cradle Plate Design:
 The RAM-B-202 RAM Mount Marine Grade Aluminum Round Plate is designed to connected to the back of cradles with an AMPS hole pattern. The round plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Samsung Galaxy Tab 10.1 Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Samsung Galaxy Tab 10.1 Mount Base Design:
 The RAM-B-121B RAM Mount Powder Coated Marine Grade Aluminum Yoke Clamp Mount Base fits a rail diameter from 5/8 inch to a maximum of 1 1/4 inches. The 1 inch rubber ball is at a right angle to the plane of the mount so when connected to a rail, the ball sits parallel to the rail. To mount the base, simply place the yoke clamps around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes and unusual shaped motorbike rails.
NOTE: The rail does not need to be perfectly round to mount this base.
|
Features & Tips |
Here is a listing we have put together of some of the common Samsung Galaxy Tab 10.1 Clamp Mount RAM-B-121-SAM5U features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Samsung Galaxy Tab 10.1 (10.1 inch Screen)
- Cradle Material: High Strength Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Yoke Clamp Base fits rails with diameter from 5/8 inch to a maximum of 1 1/4 inch.
- Common Use: Yoke Aviation Mounting, Temporary rail mounting.
|
