RAM Mount Samsung Q1 Ultra UMPC Vehicle Floor Mount |
| Part No: |
RAM-B-316-1-SAM2U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
| Learn More with our Instructional Videos (More GPS City videos.
Visit our Youtube channel.) |
RAM Rectangular Plate: Comparison Overview
(1,597 views) |
RAM Round Plate: Overview (RAM-B-202U)
(7,964 views) |
RAM AMPS Hole Pattern: Explained
(6,610 views) |
RAM Mount Plate: Overview (RAM-B-347)
(3,929 views) |
RAM Vehicle RAM-POD Mounting Base: Overview (RAM-316-1A)
(1,816 views) |
|
| What's Included In The Box? |
The RAM Mount Samsung Q1 Ultra UMPC Vehicle Floor Mount ships with the following items included: |
| Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
UMPC Mounts |
| Model: |
RAM-B-316-1-SAM2U |
SKU: |
RAMB316-1SAM2 |
UPC: |
793442910531 |
| Announced: |
August 8, 2007 |
First Shipped: |
January 1, 2007 |
Weight: |
1.525 lbs. |
| RAM Mount Samsung Q1 Ultra UMPC Vehicle Floor Mount Description |

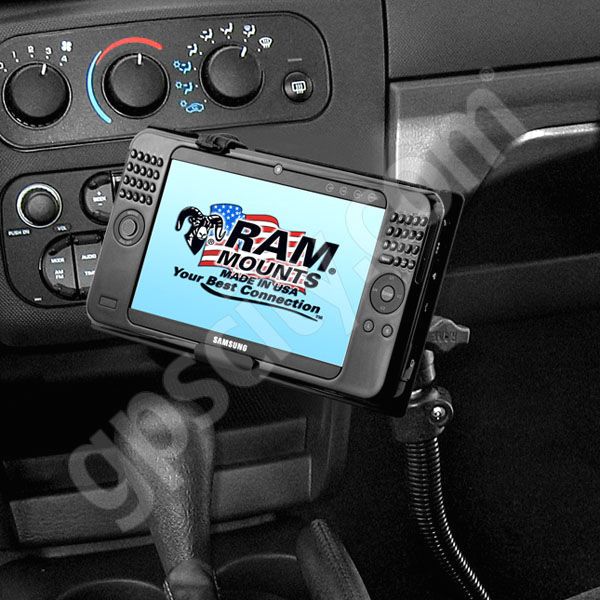

The RAM-B-316-1-SAM2 Samsung Q1 Ultra UMPC (Ultra Mobile PC) Flex Rod Vehicle Floor RAM-POD-I Mount is a Marine Grade Aluminum and Plastic Composite Mount with a RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter RAM ball and socket system on a 18 inch long Aluminum Rigid Flex Rod. With a twist of the arm knob, you can move the top of Samsung Q1 Ultra UMPC Series mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
Samsung Q1 UMPC Mounts: If you are looking for a Samsung Q1 UMPC Mount (non Ultra version), you need to select a mount from the Samsung Q1 Ultra UMPC Mount Selection Page with the RAM-HOL-SAM2 Cradle
Samsung Q1 Ultra UMPC Mount Cradle Design:
The RAM-HOL-SAM2 High Strength Plastic Cradle is a custom cradle designed to hold the Samsung Q1 Ultra (Q1U) UMPC/Tablet Series, including the following UMPC units,
- Samsung Q1 Ultra UMPC
- Samsung Q1U-CMXP UMPC
- Samsung Q1U-EL UMPC
- Samsung Q1U-ELXP UMPC
- Samsung Q1U-SSDXP UMPC
- Samsung Q1U-V UMPC
- Samsung Q1U-XP UMPC
This custom cradle has a four (4) hole AMPS patten on the back for connecting to the RAM-B-202 Mounting Plate with 1 inch Ball giving you the freedom to mount the Samsung Q1 Ultra anywhere you need, while keeping all of your required cables connected.
Samsung Q1 Ultra UMPC Mount Cradle Plate:
 The RAM-B-202 RAM Mount Marine Grade Aluminum Round Plate is designed to connected to the back of cradles with an AMPS hole pattern. The round plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Samsung Q1 Ultra UMPC Mount Arm Design: The RAP-B-200-1 RAM Mount High Strength Plastic Single Socket Short Arm has a B Size 1 inch Ball Socket at one end, and a Female Octagon button connection at the other. The Octagon Button end will mount on the end of the Aluminum Flex Rod, allowing the 1 inch socket to hold your device cradle or plate. The side of the arm includes a tightening knob which allows you to open and close the socket end.
Samsung Q1 Ultra UMPC Mount Base Design: The RAM-316-1A RAM Mount Rigid Arm Base consists of a RAM octagon at the end of a 18 inch rigid flex arm with seat rail base. The RAM-POD-I mounting foot plate base is designed to connect to a vehicle seat rail bolt in your Car, Truck, SUV, RV, Big Rig or bolted location. Connected at right angles to the mounting foot is an 18 inch long Aluminum Flexible Rod. This rod can hold light to medium weight items in your vehicle safely and securely. At the top of the rigid flex rod is a male RAM High Strength Plastic Octagon Button that will connect directly to a RAM Female Octagon Button Arm.
Movement of the Rigid 18 inch Flex Arm:It is important to note that the rigid 18 inch flex arm found on this mount is designed to hold an approximate weight of up to 4 lbs. With this in mind, the aluminum rod is more rigid than flexible. It is designed to be bent into position when being installed and then hold it's position. This means you cannot move the mount around once installed with just one hand.
Samsung Q1 Ultra UMPC Mount Options:
To help ensure you have the correct Samsung Q1 Ultra (Q1U) UMPC Mount for your needs, take a look at the list of available RAM Samsung UMPC mounts on the Samsung Q1 Ultra UMPC Mount Page. Here you can select from suction cup UMPC mounts, flat surface screw down UMPC mounts, UMPC car mounts, non skid weighted UMPC mounts and more bundled with the RAM-HOL-SAM2 Samsung Q1 Ultra (Q1U) UMPC Cradle.
|
| RAM Mount Samsung Q1 Ultra UMPC Vehicle Floor Mount Features & Tips |
Here is a listing we have put together of some of the common Samsung Q1 Ultra UMPC Vehicle Floor Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Samsung Q1 Ultra UMPC.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum with Aluminum Rod and High Strength Composite Plastic.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Single 1 inch Socket and Single Octagon Button Socket.
- Arm Length: Short length of 1.75 inches between socket center and edge.
- Post Length: 18 inch Aluminum Rod.
- Base Type: Vehicle Floor Mount to be bolted into existing seat railing.
- Common Applications:
- Vehicle Mounts: Attaching to passengers seat rail bolt.
|
