RAM Mount Samsung Q1 UMPC Edge Clamp Mount Product Detail
Call us at 1-866-GPS-CITY (1-866-477-2489) from 8AM - 5PM PST, Mon-Fri
What's Included With The RAM Mount Samsung Q1 UMPC Edge Clamp Mount? The RAM Mount Samsung Q1 UMPC Edge Clamp Mount ships with the following items included:

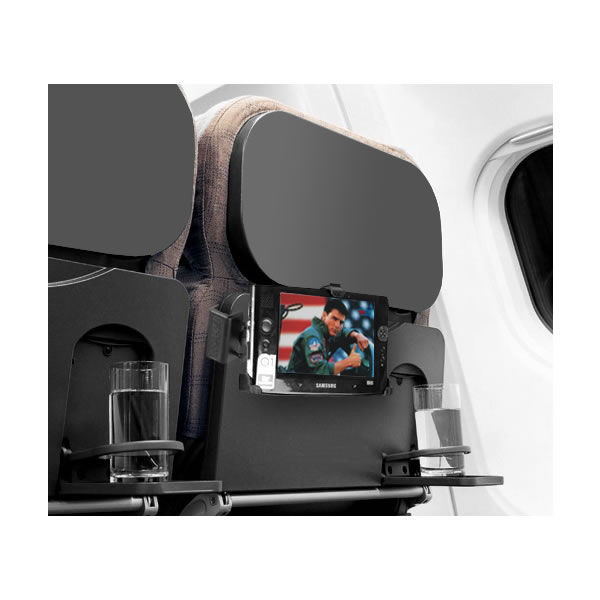

RAM Mount Samsung Q1 UMPC Edge Clamp Mount Description The RAM-B-177-SAM1 Samsung Q1 UMPC Series RAM Mount is a Marine Grade Aluminum Mount with a Glare Shield Clamp Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has an adjustment point at the cradle, base and dual arm junction point. With a twist of the arm knob, you can move the Samsung Q1 UMPC (Ultra Mobile PC) mount to your optimum viewing position.
Samsung Q1 UMPC Mount Cradle Design:
The RAM-HOL-SAM1 High Strength Plastic Cradle is a custom cradle designed to hold the Samsung Q1 UMPC/Tablet Series, including the following UMPC units,
Samsung Q1 UMPC
Samsung Q1B UMPC
Samsung Q1P UMPC
This custom cradle has a four (4) hole AMPS patten on the back for connecting to the RAM-B-202 Mounting Plate with 1 inch Ball giving you the freedom to mount the Samsung Q1 anywhere you need, while keeping all of your required cables connected.
Samsung Q1 UMPC Mount Cradle Plate:
The RAM-B-202 RAM Mount Marine Grade Aluminum Round Plate is designed to connected to the back of cradles with an AMPS hole pattern. The round plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Samsung Q1 UMPC Mount Arm Design:
The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Samsung Q1 UMPC Mount Base Design:
The RAM-B-259U Powder Coated Marine Grade Aluminum U-Channel Clamp Base is designed to mount to the lip edge of a flat surface up to 1'' thick. Popular mounting edges include a car side window edge lip, table edge or glare shield on an airplance.
The base has two plastic bolts that, when tightened, clamp the base to the lip surface. A RAM 1'' diameter rubber ball is connected to the base allowing you to connect a RAM 1'' diamter arm socket and connection plates to create the perfect mount for your application.
Samsung Q1 UMPC Mount Options:
To help ensure you have the correct Samsung Q1 UMPC Mount for your needs, take a look at the list of available RAM Samsung UMPC mounts on the Samsung Q1 UMPC Mount Page. Here you can select from suction cup UMPC mounts, flat surface screw down UMPC mounts, UMPC car mounts, non skid weighted UMPC mounts and more bundled with the RAM-HOL-SAM1 Samsung Q1 UMPC Custom Cradle.
