| Model: |
RAM Mount Samsung Q1 UMPC Tablet Yoke Mount |
| Part No: |
RAM-B-121-SAM1 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
| Learn More with our Instructional Videos (More GPS City videos.
Visit our Youtube channel.) |
RAM Rectangular Plate: Comparison Overview
(1,594 views) |
RAM Round Plate: Overview (RAM-B-202U)
(7,962 views) |
RAM AMPS Hole Pattern: Explained
(6,604 views) |
RAM Mount Plate: Overview (RAM-B-347)
(3,926 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(20,627 views) |
|
| What's Included In The Box? |
The RAM Mount Samsung Q1 UMPC Tablet Yoke Mount ships with the following items included: |
| Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
UMPC Mounts |
| Model: |
RAM-B-121-SAM1 |
SKU: |
RAMB121SAM1 |
UPC: |
793442907258 |
| Announced: |
January 22, 2008 |
First Shipped: |
January 22, 2008 |
Weight: |
1.000 lbs. |

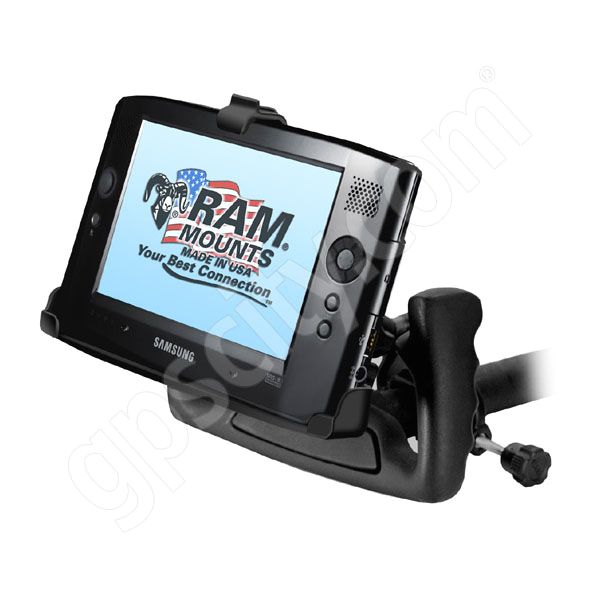

| RAM Mount Samsung Q1 UMPC Tablet Yoke Mount Description |
The RAM-B-121-SAM1 Samsung Q1 RAM Mount is a Marine Grade Aluminum Mount with a Yoke Clamp Base and RAM Plastic Cradle for the Samsung Q1 UMPC Tablet. The mount is designed with a 1 inch diameter RAM ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Samsung Q1 UMPC Tablet mount to your optimum viewing position.
Note: If you are looking for a Samsung Q1 Ultra UMPC Mount, you need to select a mount from the Samsung Q1 Ultra UMPC Mount Selection Page with the RAM-HOL-SAM2 Cradle
Samsung Q1 UMPC Mount Cradle Design:
The RAM-HOL-SAM1 High Strength Plastic Cradle is a custom cradle designed to hold the Samsung Q1 UMPC/Tablet Series, including the following UMPC units,
- Samsung Q1 UMPC
- Samsung Q1B UMPC
- Samsung Q1P UMPC
This custom cradle has a four (4) hole AMPS patten on the back for connecting to the RAM-B-202 Mounting Plate with 1 inch Ball giving you the freedom to mount the Samsung Q1 anywhere you need, while keeping all of your required cables connected.
Samsung Q1 UMPC Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Samsung Q1 UMPC Mount Base Design:
 The RAM-B-121B RAM Mount Powder Coated Marine Grade Aluminum Yoke Clamp Mount Base fits a rail diameter from 5/8 inch to a maximum of 1 1/4 inches. The 1 inch rubber ball is at a right angle to the plane of the mount so when connected to a rail, the ball sits parallel to the rail. To mount the base, simply place the yoke clamps around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes and unusual shaped motorbike rails.
NOTE: The rail does not need to be perfectly round to mount this base.
Samsung Q1 UMPC Mount Options:
To help ensure you have the correct Samsung Q1 UMPC Mount for your needs, take a look at the list of available RAM Samsung UMPC mounts on the Samsung Q1 UMPC Mount Page. Here you can select from suction cup UMPC mounts, flat surface screw down UMPC mounts, UMPC car mounts, non skid weighted UMPC mounts and more bundled with the RAM-HOL-SAM1 Samsung Q1 UMPC Custom Cradle.
|
| RAM Mount Samsung Q1 UMPC Tablet Yoke Mount Features & Tips |
Here is a listing we have put together of some of the common Samsung Q1 UMPC Tablet Yoke Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Custom Cradle for Samsung Q1 UMPC
- Cradle Material: High Strength Plastic
- Mount Material: Black Powder Coated Marine Grade Aluminum
- Mount Ball Size: RAM 1 inch Solid Rubber Ball
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint
- Arm Type: RAM Arm with Dual 1 inch Sockets
- Arm Length: Standard length of 3 inches between socket centers
- Base Type: Yoke Clamp Base fits rails with diameter from 5/8 inch to a maximum of 1 1/4 inch
- Common Use: Yoke Aviation Mounting, Temporary rail mounting
|
