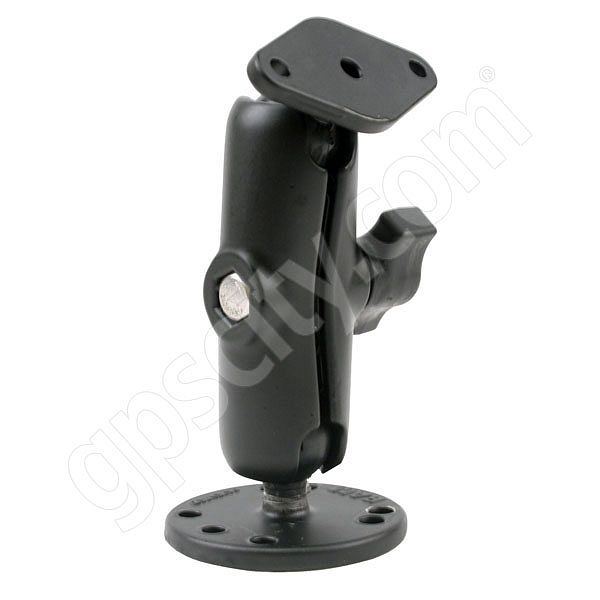

RAM Mount RAM-B-138U Aluminum Screw Down Standard Arm Diamond Plate Assembly


RAM Mount Screw Down Standard Arm Diamond Assembly
Customer Images
RAM Mounts for Rough Balloon Landing by Pascal WitpraechtigerGPS RAM Mount on Yamaha FJR1300 by Brian MarslandPolaris FST Snowmobile by Brendan
Kayak RAM Mount by Mark LaneGarmin 765T RAM Mount by Scott Georgens
Share your images and get a
free gpscity.com t-shirt!
Customer Rating: (based on 5 reviews).    Email:  Email the RAM Mount Screw Down Standard Arm Diamond Assembly page     Print:  Print the RAM Mount Screw Down Standard Arm Diamond Assembly page
100% of our reviewers recommend this item. See more RAM Mount items.

List Price: $24.37
Our Price: $20.95 (and this item ships for $2.99)
You Save: $3.42 (14%)

Availability:

In Stock.
Ships today, February 14.


Qty:

Model: RAM Mount Screw Down Standard Arm Diamond Assembly
Part No: RAM-B-138U (also RAM-B-138)
Condition: Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses)
Price Match: Get an Instant Price Match in about 5 minutes (during business hours).

Learn More with our Instructional Videos   (More GPS City videos. Visit our Youtube channel.)
RAM Plate Mount: In the Box (RAM-B-138) Video
RAM Plate Mount: In the Box (RAM-B-138)
(213 views)
RAM Plate Mount: Overview (RAM-B-138) Video
RAM Plate Mount: Overview (RAM-B-138)
(215 views)
RAM Diamond Plate: Overview (RAM-B-238U) Video
RAM Diamond Plate: Overview (RAM-B-238U)
(20,283 views)
RAM AMPS Hole Pattern: Explained Video
RAM AMPS Hole Pattern: Explained
(6,604 views)
RAM Mount Plate: Overview (RAM-B-347) Video
RAM Mount Plate: Overview (RAM-B-347)
(3,926 views)

RAM Mount Sub-Component Breakdown
Here are the sub-component parts that make up this item:

Diamond Plate with 1 inch Ball RAM-B-238U
+
Medium Arm B-Socket RAM-B-201U
+
Round Plate with 1 inch Ball RAM-B-202U


Most Popular RAM Mount Screw Down Standard Arm Diamond Assembly Accessories     (View all accessories.)
Go to the RAM Mount Non Skid Weighted Friction Base
RAM Mount Non Skid Weighted Friction Base
$34.95
Go to the RAM Mount Round 2.5 inch dia Adhesive 3M Disk
RAM Mount Round 2.5 inch dia Adhesive 3M Disk
$4.25
Go to the RAM Mount Plastic Magnetic Adapter Base
RAM Mount Plastic Magnetic Adapter Base
$12.95
Go to the RAM Mount Locking Suction Cup with 1.0 inch Ball Metal Plate
RAM Mount Locking Suction Cup with 1.0 inch Ball Metal Plate
$13.95
Go to the RAM Mount Round Plate with 1 inch Ball RAM-B-202U
RAM Mount Round Plate with 1 inch Ball RAM-B-202U
$6.10


What's Included In The Box?

The RAM Mount Screw Down Standard Arm Diamond Assembly ships with the following items included:


Product Information
Manufacturer: National Products, Inc Category: All Purpose Mounts Type: Cradle Mounts
Model: RAM-B-138U SKU: RAMB138 UPC: 793442138003
Announced: November 30, 1999 First Shipped: August 2, 2001 Weight: 0.494 lbs.

Mechanical Drawing
Mechanical Drawing: RAM Mount Screw Down Standard Arm Diamond Assembly Mechanical Drawing (PDF)

Alternative Models For This Item
RAM Mount Screw Down Standard Arm Diamond Assembly
RAM Mount Screw Down Standard Arm Diamond Assembly
RAM Mount Plastic Round Base and Standard Arm Diamond Assembly
RAM Mount Plastic Round Base and Standard Arm Diamond Assembly


RAM Mount Screw Down Standard Arm Diamond Assembly Description
The RAM-B-138 Universal RAM Mount is a Marine Grade Aluminum Mount with a flat surface screw down base and universal diamond plate. This mount is a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the diamond plate will connect to a large variety of third party cradles and mounts including mounts with the industry standard AMPS hole pattern. Designed into the mount is a RAM 1 inch diameter patented rubber ball and socket system with an adjustment point at the cradle and base. With a twist of the arm knob, you can move the diamond plate end to your optimum viewing position.

Universal Mount End Plate Design:


The RAM-B-238 Powder Coated Marine Grade Aluminum Universal Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 1 1/4 x 2 1/2 inch Diamond Plate. The plate has two pre-drilled holes positioned at either tip of the diamond plate. The hole pattern found on the Diamond Plate will connect to a large variety of RAM Mount and third party cradles and mounts, including those with the industry standard AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).

Universal Mount Arm Design:


The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).

Universal Mount Base Design:


The RAM-B-202 RAM Mount Marine Grade Aluminum Screw Down Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 2.5 inch diameter Plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).

Mount Base Mounting Solutions:

Mounting hardware is NOT included with the purchase of the RAM-B-202. A semi-permanent solution for mounting this base is by using the RAM double sided adhesive disk (RAM-202PSA). The disk will hold the RAM-B-202 base in many different locations without screws.
