What's Included In The Box? |
The RAM Mount SkyCaddie SG2 Mini Screw Down Plate Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-102-SG2 |
SKU: |
RAMB102SG2 |
UPC: |
|
| Announced: |
August 25, 2008 |
First Shipped: |
October 9, 2008 |
Weight: |
0.500 lbs. |
Manufacturer Description |

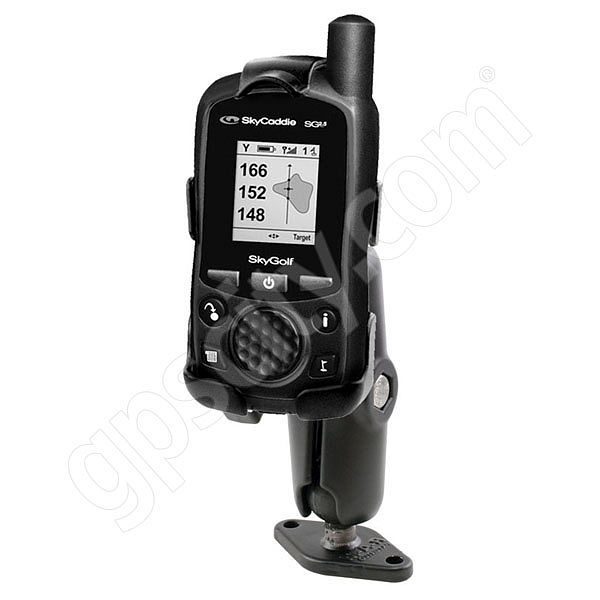

The RAM-B-102-SG2 SkyCaddie SG2 and SG1 Series RAM Mount is a Marine Grade Aluminum Mount with a Mini Flat Surface Screw Down Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move theSkyCaddie SG2 and SG1 Series mount to your optimum viewing position.
SkyCaddie Golf GPS Mount Options:
To help ensure you have the SkyCaddie SG2 and SkyCaddie SG1 Golf GPS Mount you require, take a look at the list of available RAM SkyCaddie GPS mounts on the RAM-HOL-SG2 Series of SkyCaddie SG2 and SkyCaddie SG1 Golf GPS Cradles and Mounts Page. Here you can select from suction cup golf GPS mounts, flat surface screw down golf GPS mounts, temporary golf GPS mounts and more bundled with the RAM-HOL-SG2 SkyCaddie SG2 and SkyCaddie SG1 Golf GPS Cradle.
SkyCaddie Golf GPS Mount Cradle Design:
 The RAM-HOL-SG2 RAM Mount High Strength Plastic Cradle is designed to hold the SkyCaddie SG2 and SkyCaddie SG1 Series Golf GPS. All cables can stay connected to the unit while in the RAM cradle.
SkyCaddie Golf GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
SkyCaddie Golf GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
SkyCaddie Golf GPS Mount Base Design:
The RAM-B-238 Powder Coated Marine Grade Aluminum Universal Base Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 1 1/4 x 2 1/2 inch Diamond Plate. The plate has two pre-drilled holes positioned at either tip of the diamond plate. This is the perfect mounting solution when you need to mount your device with a small foot print. Great as a motorcycle mount when mounting on a small ledge or vehicle mount when you want to bolt inside your vehicle. This base needs to be bolted or screwed to the mounting surface. Mounting hardware is not included. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
|
Features & Tips |
Here is a listing we have put together of some of the common SkyCaddie SG2 Mini Screw Down Plate Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for SkyCaddie SG2 and SG1 Series.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Diamond shaped plate designed to be bolted to a flat surface with small foot print.
- Common Applications:
- Golf Buggy Mounts: Attaching to your buggy dash or console with hardware or PSA Adhesive.
- General Mounts: Attaching to any ledge or flat surface on your golf cart or buggy.
|
