What's Included In The Box? |
The RAM Mount SkyCaddie SG2 Universal Clamp Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAP-B-121-SG2 |
SKU: |
RAPB121SG2 |
UPC: |
|
| Announced: |
January 22, 2009 |
First Shipped: |
January 22, 2009 |
Weight: |
0.676 lbs. |
Manufacturer Description |

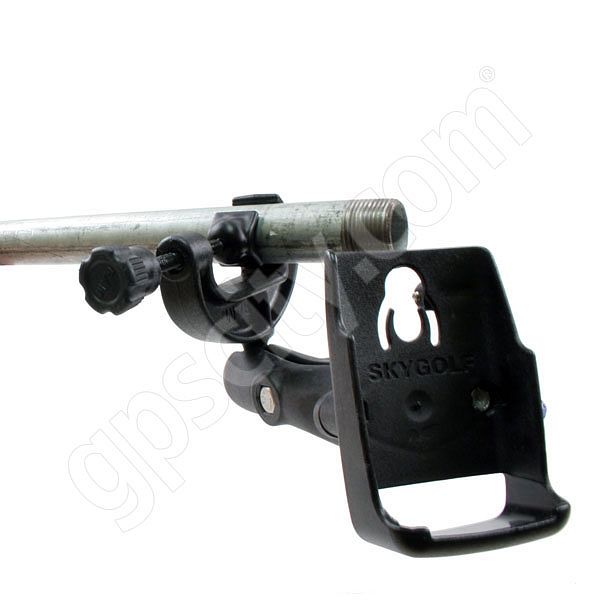

The RAP-B-121-SG2 SkyCaddie SG2 and SG1 Series Universal Clamp RAM Mount is a High Strength Plastic Composite Mount with a round or flat surface clamping base and RAM custom plastic cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the SkyCaddie SG2 and SG1 mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
SkyCaddie Golf GPS Mount Options:
To help ensure you have the SkyCaddie SG2 and SkyCaddie SG1 Golf GPS Mount you require, take a look at the list of available RAM SkyCaddie GPS mounts on the RAM-HOL-SG2 Series of SkyCaddie SG2 and SkyCaddie SG1 Golf GPS Cradles and Mounts Page. Here you can select from suction cup golf GPS mounts, flat surface screw down golf GPS mounts, temporary golf GPS mounts and more bundled with the RAM-HOL-SG2 SkyCaddie SG2 and SkyCaddie SG1 Golf GPS Cradle.
SkyCaddie Golf GPS Mount Cradle Design:
 The RAM-HOL-SG2 RAM Mount High Strength Plastic Cradle is designed to hold the SkyCaddie SG2 and SkyCaddie SG1 Series Golf GPS. All cables can stay connected to the unit while in the RAM cradle.
SkyCaddie Golf GPS Mount Cradle Plate:The RAP-B-238 RAM Mount High Strength Plastic Composite Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file) (Note: the Plastic RAP-B-238 Plate is thicker than the RAM-B-238 Design Drawings shown).
SkyCaddie Golf GPS Mount Arm Design: The RAP-B-201 RAM Mount Dual Socket Arm is a 1 inch B size Ball Dual Socket Arm made of High Strength Plastic. The arm is 3.0 inches long between socket centers. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAP-B-201 arm, take a closer look with the RAM-B-201 Aluminum Arm Design Drawings (pdf file).
SkyCaddie Golf GPS Mount Base Design:
 The RAP-B-121B RAM Mount High Strength Plastic Universal Clamp Mount Base fits a rail or edge lip from 5/8'' to a maximum of 1 1/4''. The mounting base can also accept a second ball giving you the ultimate double ball base.
To mount the base, simply place the clamp ends around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes, golf buggies or unusual shaped motorbike rails.
Note: The rail does not need to be perfectly round to mount this base.
|
Features & Tips |
Here is a listing we have put together of some of the common SkyCaddie SG2 Universal Clamp Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for SkyCaddie SG2 and SG1 Series.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black High Strength Composite Plastic.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Material: Black High Strength Plastic Composite.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Universal Plastic Temporary Clamp Base for widths between 0.63 and 1.25 inch.
- Base Material: Black High Strength Plastic Composite.
- Common Applications:
- Golf Buggy Mounts: Temporarily attaching to the golf buggy or cart frame work.
- General Mounts: Attaching to available pipes or poles.
|
