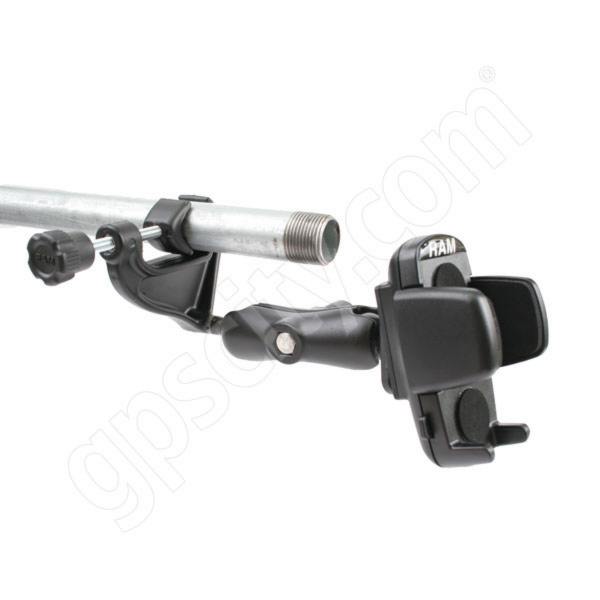

The RAM-B-121-UN1 RAM Mount Marine Grade Aluminum Yoke Mount consists of the 1 inch diameter ball and socket system with RAM Universal Small Side Clamping Plastic Cradle.
Mount Cradle Design:
The RAM-HOL-UN1 Small RAM Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices.
Using the Cradle:
This cradle has padded locking side clamps that close tightly on the item you want to hold. To release the clamp hold, simply press the button found at the bottom left side of the cradle which will spring the clamps open. At the base of the cradle are two small supports to hold the bottom of the item securely in the cradle. This RAM universal side clamping cradle is designed to be used in a closed cabin, low vibration environment. This system is not recommended as a motorcycle mount.
Universal Cradle Dimensions:
NOTE: The top of the cradle is open, so the items in the cradle can be larger than the height of the cradle.
- Minimum Grip Width: 1.5"
- Maximum Grip Width: 2.6"
- Side Clamp Height: 1.88"
- Side Clamp Depth: 1.13"
- Cradle Spine Height: 3.68"
- Cradle Spine Width: 2.0"
Mount Arm Design:
The Powder Coated Marine Grade Aluminum Standard Length Double Socket Arm is 3.0' long when measured between socket centers.
Mount Base Design:
The RAM-B-121B RAM Mount Powder Coated Marine Grade Aluminum Yoke Clamp Mount Base fits a rail diameter from 5/8 inch to a maximum of 1 1/4 inches. The 1 inch rubber ball is at a right angle to the plane of the mount so when connected to a rail, the ball sits parallel to the rail. To mount the base, simply place the yoke clamps around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes and unusual shaped motorbike rails.
NOTE: The rail does not need to be perfectly round to mount this base.
