Customer Rating:  (based on 3 reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$43.47 |
| Our Price: |
$36.95 (and this item ships for $4.99) |
| You Save: |
$6.52 (15%) |
Availability: |
In Stock.
Ships tomorrow, May 29. |
|
| |
| Model: |
RAM Mount StreetPilot c3xx Series on Motorcycle Brake Mount |
| Part No: |
RAM-B-174-GA19U (also RAM-B-174-GA19) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Garmin c300 Cradle: In Use (RAM-HOL-GA19)
(1,769 views) |
RAM Garmin c300 Cradle: Attaching Cable (RAM-HOL-GA19)
(1,913 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,942 views) |
RAM Motorcycle Kit: On Suzuki Reservoir (RAM-B-309 Series)
(18,978 views) |
RAM Motorcycle Kit: On Suzuki Handlebar (RAM-B-309 Series)
(4,590 views) |
|
What's Included In The Box? |
The RAM Mount StreetPilot c3xx Series on Motorcycle Brake Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-174-GA19U |
SKU: |
RAMB174GA19 |
UPC: |
|
| Announced: |
January 1, 2007 |
First Shipped: |
January 1, 2007 |
Weight: |
0.801 lbs. |
Manufacturer Description |

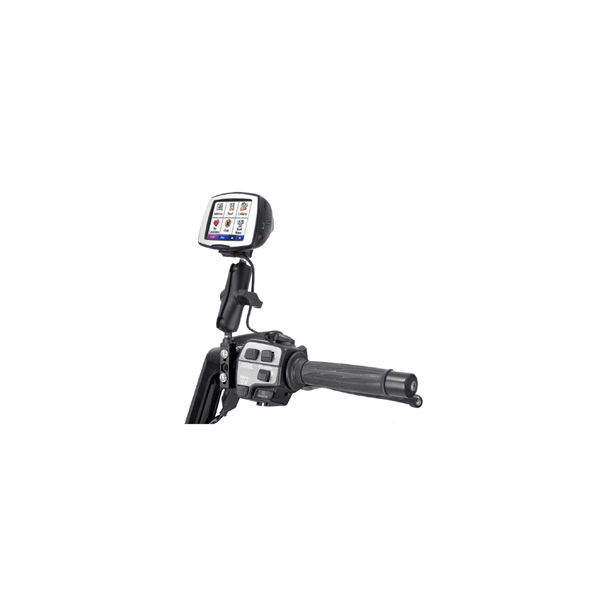

The RAM-B-174-GA21 RAM Mount Marine Grade Aluminum Motorcycle Brake/Clutch Base Mount consists of the 1 inch diameter RAM ball and socket system with RAM Plastic Cradle for the Garmin StreetPilot c3xx Series, including the StreetPilot c320, StreetPilot c330, StreetPilot c340.
Mount Cradle Design:
The RAM-HOL-GA19 RAM Mount High Strength Plastic Cradle is designed to hold the Garmin StreetPilot c3xx Series GPS which includes following units,
- Garmin StreetPilot c320
- Garmin StreetPilot c330
- Garmin StreetPilot c340
- Garmin StreetPilot c310 (European Version)
To use the 12V Power Cable, while the GPS is in the RAM Mount cradle, you will need to remove the cable from the Garmin cradle (included with the purchase of the GPS). Simply remove the screw holding the power cable in the Garmin cradle, and reconnect it to the RAM Mount RAM-HOL-GA19 Cradle.
The Garmin StreetPilot c5xx Series GPS, including the StreetPilot c510, c530, c550 and c580, WILL NOT fit this cradle. These units require the RAM-HOL-GA22 RAM Mount Connector Cradle for the Garmin G-Ball Socket on the back of the GPS unit.
Mount Arm Design:
 The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
Mount Base Design:
 The RAM-B-309-7 RAM Mount Motorcycle Kit Base can mount to either the clutch/ brake reservoir or directly to a round handle bar rail. The base is constructed of marine grade aluminum with an integrated 1 inch diameter rubber ball, hardware for rail mounting and both standard and metric mounting bolts for motorcycle reservoir mounting. The zinc coated metal u-bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 1/2 to 1.25 inches.
The base connects to the left or right side of your handlebar clutch/brake reservoir on the Honda Goldwing and other select motorcycles or you can connect directly to your handlebars with the u-bolt hardware. To see if this base will work with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94 inches and a maximum of 1.58 inches.
|
