Customer Images
Share your images and get a
free gpscity.com t-shirt!
|
Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$44.65 |
| Our Price: |
$36.95 (and this item ships for $3.49) |
| You Save: |
$7.70 (17%) |
Availability: |
In Stock.
Ships tomorrow, May 29. |
|
| |
| Model: |
RAM Mount StreetPilot III Strap Mount RAM-B-108-G1 |
| Part No: |
RAM-B-108-G1 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
Universal Plate Connector: In the Box (RAM-B-202-G1)
(365 views) |
Universal Plate Connector: Garmin Cradle (RAM-B-202-G1)
(650 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,942 views) |
Check out our
channel. | |
|
What's Included In The Box? |

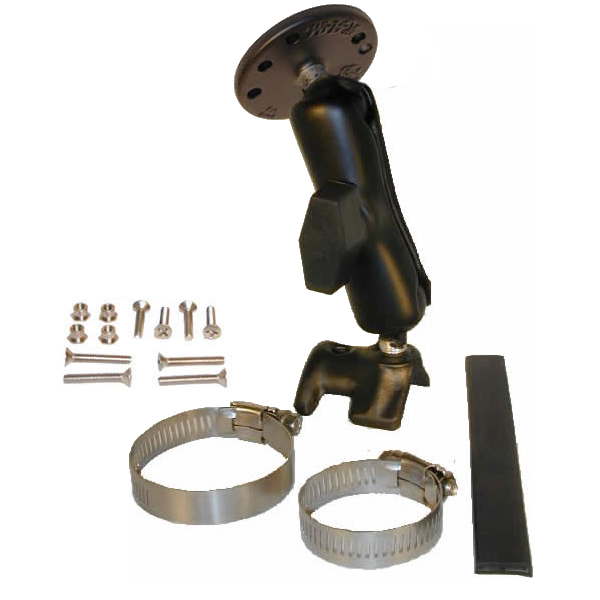

The RAM Mount StreetPilot III Strap Mount RAM-B-108-G1 ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-108-G1 |
SKU: |
RAMB108G1 |
UPC: |
793442110825 |
| Announced: |
November 30, 1999 |
First Shipped: |
March 12, 2002 |
Weight: |
0.731 lbs. |
Manufacturer Description |
The RAM-B-108-G1 RAM Mount Marine Grade Aluminum Mount, with Universal Rail Strap Base, consists of the 1 inch diameter ball and socket system with RAM Universal 2.5 inch diameter plate and connection hardware. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the connection 2.5 inch diameter plate will connect to a large variety of third party cradles and mounts.
Mount Cradle Design:
The RAM-B-202-G1 RAM Mount Aluminum 2.5 inch diameter round plate, with connection plate hardware, has an AMPS hole pattern which will connect to many different cradles. The plate ships with a set of short and long nuts and bolts to connect the plate to your required cradle, and many other devices. This RAM Mount plate will connect to many different cradles made by Garmin with an AMPS four hole pattern, including the following:
Note: The Garmin cradles listed are included with the purchase of each GPS unit, or can purchased separately.
* The Garmin cradle for the GPSMAP 176, GPSMAP 176C, GPSMAP 276C, GPSMAP 196 (only the cradle on the yoke mount) and GPSMAP 296 (only the cradle on the yoke mount) will connect to this RAM mount, by unscrewing the cradle from the mount. For an even stronger holding cradle, you can purchase the cradle manufactured by RAM (RAM-HOL-GA7).
Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Mount Base Design:
 The RAM-B-108B RAM Mount Marine Grade Aluminum Rail Strap Mount Base is a clamping rail strap base. The base includes a 6 inch metal strap and an 8 inch long metal strap designed to fit a rail or post with a diameter from 1 to 1.9 inches. When the base is mounted, a 1 inch rubber ball sits at a right angles to the mounting post.
NOTE: The base mounts on round, square or odd shaped posts.
|
