Product Detail & Documentation (all files in PDF format)
Manufacturer
RAM Mount
Category
PDA Mounts
Model
RAM-B-121-TD3
SKU
RAMB121TD3
Weight
1.056 lbs.
Share this item:
Need Assistance? We're here to help. (That's the GPS City Difference!)
For quick help selecting the right GPS unit, try our
GPS Selector Tool,
check specifications, or
compare GPS units. If you have a specific question about an
item, try entering your question using the
Q&A (Questions & Answers) section above - we usually respond on the same or next day. During our office hours 8AM - 5PM PDT, Mon-Fri, you can contact us using
, or reach us by phone at 1-866-GPS-CITY.
What's Included With The RAM Mount TDS Nomad PDA Temporary Tri-Pod Rail Mount? The RAM Mount TDS Nomad PDA Temporary Tri-Pod Rail Mount ships with the following items included:

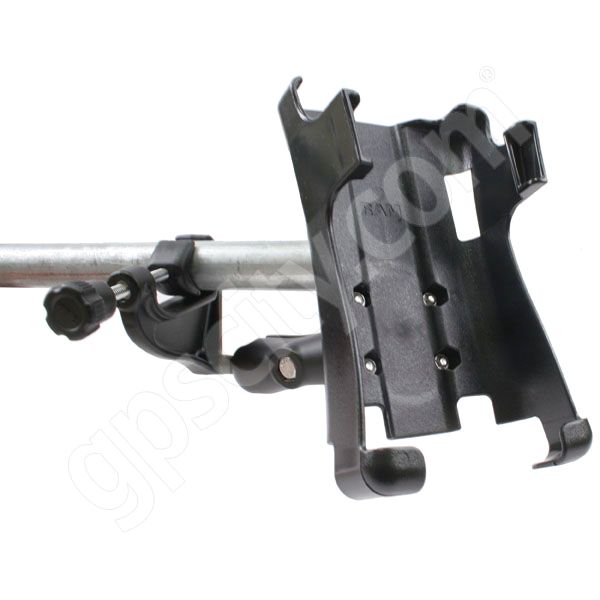

RAM Mount TDS Nomad PDA Temporary Tri-Pod Rail Mount Description The RAM-B-121-TD3 TDS Nomad PDA RAM Mount is a Marine Grade Aluminum Mount with a Temporary Post Clamp Base and RAM Plastic Cradle for the TDS Nomad PDA. The mount is designed with a 1 inch diameter RAM ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the TDS Nomad PDA mount to your optimum viewing position.
TDS Nomad PDA Mount Cradle Design:
The RAM-HOL-TD3 RAM Mount High Strength Plastic Cradle is designed to hold the following TDS PDA units,
TDS Nomad PDA
The back of the cradle is connected to a round plate with ball. The ball gives the cradle the ability to connect to the RAM arm on this mount and also creates a ball and socket joint allowing you to move the cradle into many different viewing locations. All cables can stay connected to the TDS Nomad while in the RAM cradle.
TDS Nomad PDA Mount Arm Design:
The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
TDS Nomad PDA Mount Base Design:
The RAM-B-121B RAM Mount Powder Coated Marine Grade Aluminum Yoke Clamp Mount Base fits a rail diameter from 5/8 inch to a maximum of 1 1/4 inches. The 1 inch rubber ball is at a right angle to the plane of the mount so when connected to a rail, the ball sits parallel to the rail. To mount the base, simply place the yoke clamps around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes and unusual shaped motorbike rails.
NOTE: The rail does not need to be perfectly round to mount this base.
TDS Nomad PDA Mount Options:
To help ensure you have the TDS Nomad Mount you require, take a look at the list of available RAM TDS PDA mounts on the TDS Nomad Mount List Page. Here you can select from pole/rail TDS mounts, suction cup TDS mounts, flat surface screw down TDS mounts and more bundled with the TDS Nomad Cradle.
Tags for: RAM Mount TDS Nomad PDA Temporary Tri-Pod Rail Mount ram mount ram mounts, tds nomad pda temporary tri pod rail mount, ram mount tds nomad pda temporary tri pod rail mount.
