Customer Images
Share your images and get a
free gpscity.com t-shirt!
|
Customer Rating:  (based on 18 reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$43.73 |
| Our Price: |
$37.95 (and this item ships for $3.49) |
| You Save: |
$5.78 (13%) |
Availability: |
In Stock.
Ships today, February 14. |
|
| |
|
|
| Model: |
RAM Mount TomTom GO 520 720 920 Stainless Steel U-Bolt Mount |
| Part No: |
RAM-B-149-TO6U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
| Learn More with our Instructional Videos (More GPS City videos.
Visit our Youtube channel.) |
RAM TomTom GO Cradle: In Use (RAM-HOL-TO6)
(5,420 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(20,286 views) |
RAM AMPS Hole Pattern: Explained
(6,610 views) |
RAM Mount Plate: Overview (RAM-B-347)
(3,929 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(20,635 views) |
|
| Most Popular RAM Mount TomTom GO 520 720 920 Stainless Steel U-Bolt Mount Accessories
(View all accessories.) |
Gilsson Bare Wire Power Cable
$21.95
|
|
|
|
|
|
| What's Included In The Box? |
The RAM Mount TomTom GO 520 720 920 Stainless Steel U-Bolt Mount ships with the following items included: |
| Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-149-TO6U |
SKU: |
RAMB149TO6 |
UPC: |
|
| Announced: |
October 24, 2007 |
First Shipped: |
November 1, 2007 |
Weight: |
0.650 lbs. |
| RAM Mount TomTom GO 520 720 920 Stainless Steel U-Bolt Mount Description |

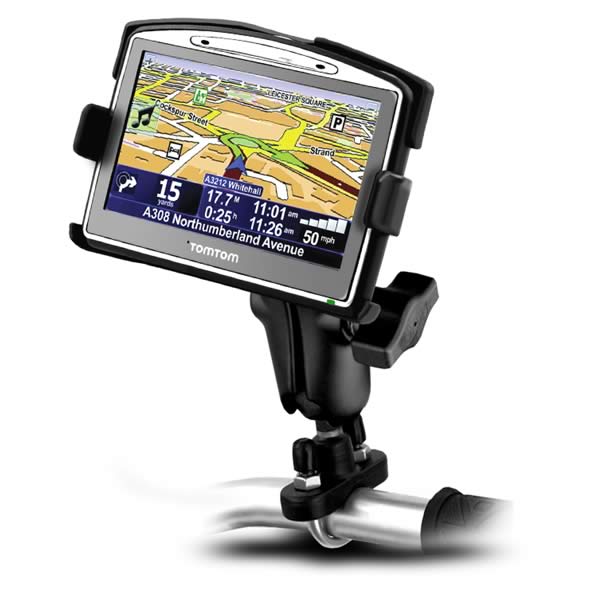

The RAM-B-149-TO6 TomTom GO 520/520T, GO 720/720T and GO 920/920T Series Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Stainless Steel U-Bolt Rail Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the TomTom GO 520/520T, GO 720/720T and GO 920/920T Series mount to your optimum viewing position.
TomTom GPS Mount Options:
To help ensure you have the TomTom GO 720 and GPS 920 Mount you require, take a look at the list of available RAM TomTom GPS mounts on the TomTom GO 720 and GPS 920 Mount Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-TO6 TomTom GO 720 and GPS 920 Cradle.
TomTom GPS Mount Cradle Design:
The RAM-HOL-TO6 RAM Mount High Strength Plastic Cradle is designed to hold the following TomTom GPS units,
- TomTom GO 520
- TomTom GO 520T
- TomTom GO 720
- TomTom GO 720T
- TomTom GO 920
- TomTom GO 920T
All cables can stay connected to the unit while in the RAM cradle.
TomTom GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
TomTom GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
TomTom GPS Mount Base Design:
 The RAM-B-231 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Stainless Steel U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
NOTE: This base is completely rust proof.
For Larger Rail Mounting:
For a larger rail, you can purchase the RAM Mount Stainless Steel Large Rail U-Bolt for circular rails with diameter up to 1.25 inches.
|
| RAM Mount TomTom GO 520 720 920 Stainless Steel U-Bolt Mount Features & Tips |
Here is a listing we have put together of some of the common TomTom GO 520 720 920 Stainless Steel U-Bolt Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for TomTom GO 520/520T, GO 720/720T and GO 920/920T0 Series.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Stainless Steel U-Bolt. (0.75 to 1 inch wide)
- Common Applications:
- Motorcycle and ATV Mounts: Attaching to handlebars.
- Hiking Mounts: Attaching to hiking staffs.
- General Mounts: Attaching to available pipes or poles.
|
