See more RAM Mount items. |
| |
| List Price: |
$42.80 |
| Our Price: |
$35.95 |
| You Save: |
$6.85 (16%) |
Availability: |
In Stock.
Ships today, May 29. |
|
| |
| Model: |
RAM Mount TomTom GO 740 LIVE Motorcycle Mount Kit RAM-B-174-TO9U |
| Part No: |
RAM-B-174-TO9U (also RAM-B-174-TO9) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,627 views) |
RAM AMPS Hole Pattern: Explained
(8,035 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,942 views) |
RAM Motorcycle Kit: On Suzuki Reservoir (RAM-B-309 Series)
(18,978 views) |
|
What's Included In The Box? |
The RAM Mount TomTom GO 740 LIVE Motorcycle Mount Kit RAM-B-174-TO9U ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-174-TO9U |
SKU: |
RAMB174TO9 |
UPC: |
793442929281 |
| Announced: |
February 17, 2010 |
First Shipped: |
May 10, 2010 |
Weight: |
0.938 lbs. |
Manufacturer Description |

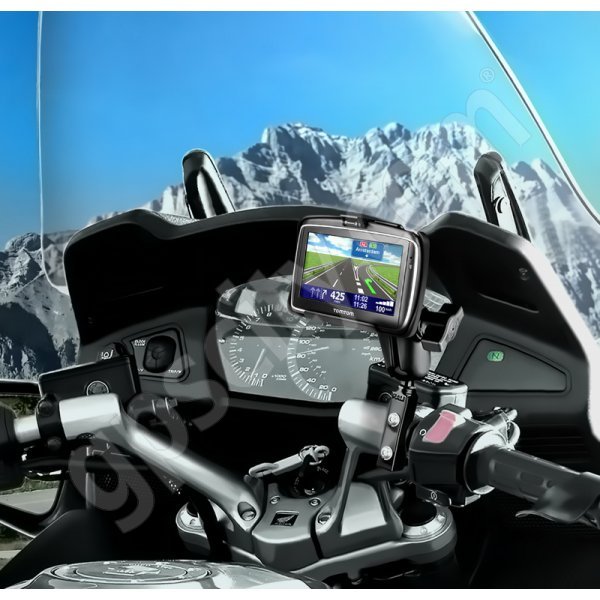

The RAM-B-174-TO9 TomTom GO 740 LIVE Series Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Motorcycle Brake/Clutch Reservoir Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the TomTom GO 740 LIVE Series mount to your optimum viewing position.
TomTom GPS Mount Options:
TomTom GPS Mount Cradle Design:
TomTom GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
TomTom GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
TomTom GPS Mount Base Design:
 The RAM-B-309-7 RAM Mount Motorcycle Kit Base can mount to either the clutch/ brake reservoir or directly to a round handle bar rail. The base is constructed of marine grade aluminum with an integrated 1 inch diameter rubber ball, hardware for rail mounting and both standard and metric mounting bolts for motorcycle reservoir mounting. The zinc coated metal u-bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 1/2 to 1.25 inches.
The base connects to the left or right side of your handlebar clutch/brake reservoir on the Honda Goldwing and other select motorcycles or you can connect directly to your handlebars with the u-bolt hardware. To see if this base will work with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94 inches and a maximum of 1.58 inches.
|
Features & Tips |
Here is a listing we have put together of some of the common TomTom GO 740 LIVE Motorcycle Mount Kit RAM-B-174-TO9U features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for TomTom GO 740 LIVE Series.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Motorcycle Motorcycle Brake/Clutch Reservoir Base
- Common Applications:
- Motorcycle Mounts: Used mostly with Goldwing and Harley Davidson Motorcycles.
|
