Customer Images
Share your images and get a
free gpscity.com t-shirt!
|
Customer Rating:  (based on 1 reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$40.71 |
| Our Price: |
$35.95 (and this item ships for $3.49) |
| You Save: |
$4.76 (12%) |
Availability: |
In Stock.
Ships today, May 29. |
|
| |
|
|
| Model: |
RAM Mount TomTom ONE XL and XLS Zinc Coated U-Bolt Short Mount |
| Part No: |
RAM-B-149Z-A-TO5 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM TomTom ONE XL S Cradle: In Use (RAM-HOL-TO5)
(4,128 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,627 views) |
RAM AMPS Hole Pattern: Explained
(8,035 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views) |
RAM Short Arm: Overview (RAM-B-201U-A)
(3,835 views) |
|
What's Included In The Box? |
The RAM Mount TomTom ONE XL and XLS Zinc Coated U-Bolt Short Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-149Z-A-TO5 |
SKU: |
RAMB149ZATO5 |
UPC: |
|
| Announced: |
September 9, 2008 |
First Shipped: |
September 9, 2008 |
Weight: |
0.700 lbs. |
Manufacturer Description |

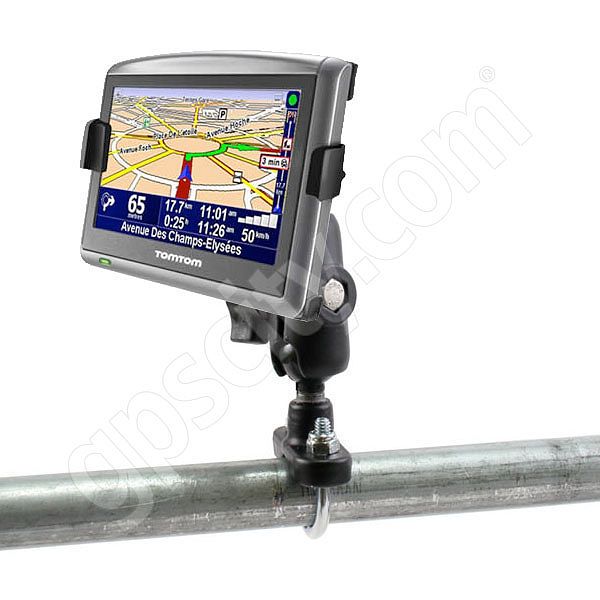

The RAM-B-149Z-A-TO5 TomTom ONE XL and ONE XL-S Series Short Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Zinc Coated U-Bolt Rail Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the short arm knob, you can move the TomTom ONE XL and ONE XL-S Series mount to your optimum viewing position.
TomTom GPS Mount Options:
To help ensure you have the TomTom ONE XL Series Mount you require, take a look at the list of available RAM TomTom GPS mounts on the TomTom ONE XL Series Mount Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-TO5 TomTom ONE XL Series Cradle.
TomTom GPS Mount Cradle Design:
The RAM-HOL-TO5 RAM Mount High Strength Plastic Cradle is designed to hold the following TomTom GPS units,
- TomTom ONE XL
- TomTom ONE XL-S
The back of the cradle is connected to a diamond plate with ball. The ball gives the cradle the ability to connect to the RAM arm on this mount and also creates a ball and socket joint allowing you to move the cradle into many different viewing locations. All cables can stay connected to the unit while in the RAM cradle.
TomTom GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
TomTom GPS Mount Arm Design:
 The RAM-B-201-A RAM Mount Dual Socket Short Arm is a 1 inch B size Ball Dual Socket Arm made of Marine Grade Aluminum. The arm is 1.75 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201A arm, take a closer look with the RAM-B-201A Design Drawings (pdf file).
TomTom GPS Mount Base Design:
 The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.
|
Features & Tips |
Here is a listing we have put together of some of the common TomTom ONE XL and XLS Zinc Coated U-Bolt Short Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for TomTom ONE XL and ONE XL-S Series.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Short length of 1.75 inches between socket centers.
- Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Zinc Coated U-Bolt. (0.75 to 1 inch wide)
- Common Applications:
- Motorcycle and ATV Mounts: Attaching to handlebars.
- Hiking Mounts: Attaching to hiking staffs.
- General Mounts: Attaching to available pipes or poles.
|
