| Model: |
RAM Mount TomTom ONE XL Stainless Steel U-Bolt Mount |
| Part No: |
RAM-B-149-TO5U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
| Learn More with our Instructional Videos (More GPS City videos.
Visit our Youtube channel.) |
RAM TomTom ONE XL S Cradle: In Use (RAM-HOL-TO5)
(3,901 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(20,301 views) |
RAM AMPS Hole Pattern: Explained
(6,618 views) |
RAM Mount Plate: Overview (RAM-B-347)
(3,933 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(20,647 views) |
|
| What's Included In The Box? |
The RAM Mount TomTom ONE XL Stainless Steel U-Bolt Mount ships with the following items included: |
| Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-149-TO5U |
SKU: |
RAMB149TO5 |
UPC: |
|
| Announced: |
July 11, 2007 |
First Shipped: |
January 1, 2007 |
Weight: |
0.650 lbs. |
| RAM Mount TomTom ONE XL Stainless Steel U-Bolt Mount Description |

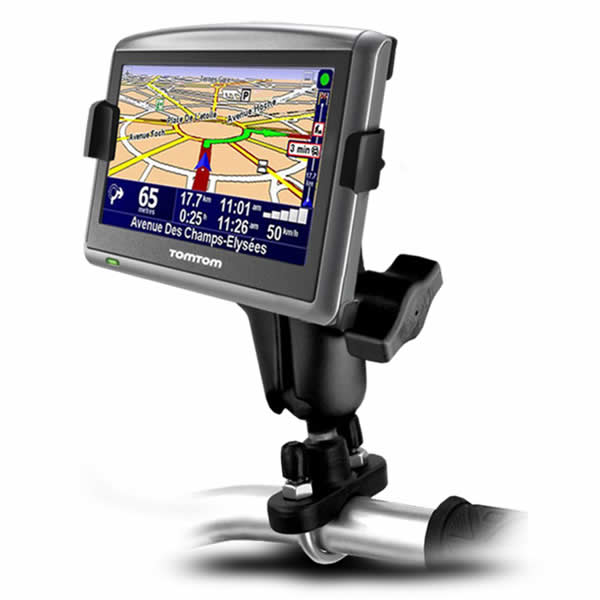

The RAM-B-149-TO5 RAM Mount Marine Grade Aluminum Stainless Steel U-Bolt Rail Base Mount consists of the 1 inch diameter ball and socket system with RAM Plastic Cradle for the TomTom ONE XL and ONE XL-S Series.
TomTom GPS Mount Cradle Design:
The RAM-HOL-TO5 RAM Mount High Strength Plastic Cradle is designed to hold the following TomTom GPS units,
- TomTom ONE XL
- TomTom ONE XL-S
The back of the cradle is connected to a diamond plate with ball. The ball gives the cradle the ability to connect to the RAM arm on this mount and also creates a ball and socket joint allowing you to move the cradle into many different viewing locations. All cables can stay connected to the unit while in the RAM cradle.
TomTom GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
TomTom GPS Mount Base Design:
 The RAM-B-231 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Stainless Steel U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
NOTE: This base is completely rust proof.
For Larger Rail Mounting:
For a larger rail, you can purchase the RAM Mount Stainless Steel Large Rail U-Bolt for circular rails with diameter up to 1.25 inches.
TomTom GPS Mount Options:
To help ensure you have the TomTom ONE XL Series Mount you require, take a look at the list of available RAM TomTom GPS mounts on the TomTom ONE XL Series Mount Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-TO5 TomTom ONE XL Series Cradle.
|
| RAM Mount TomTom ONE XL Stainless Steel U-Bolt Mount Features & Tips |
Here is a listing we have put together of some of the common TomTom ONE XL Stainless Steel U-Bolt Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Custom Cradle for TomTom GPS listed
- Cradle Material: High Strength Plastic
- Mount Material: Black Powder Coated Marine Grade Aluminum
- Mount Ball Size: RAM 1 inch Solid Rubber Ball
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint
- Arm Type: RAM Arm with Dual 1 inch Sockets
- Arm Length: Standard length of 3 inches between socket centers
- Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Stainless Steel U-Bolt
|
