| Model: |
RAM Mount Top Clamp PDA Zinc U-Bolt Mount |
| Part No: |
RAM-B-149Z-PD1U (also RAM-B-149Z-PD1) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,627 views) |
RAM AMPS Hole Pattern: Explained
(8,035 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,942 views) |
RAM Motorcycle U-Bolt Base: On Suzuki (RAM-B-231ZU)
(25,286 views) |
|
What's Included In The Box? |
The RAM Mount Top Clamp PDA Zinc U-Bolt Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
PDA Mounts |
| Model: |
RAM-B-149Z-PD1U |
SKU: |
RAMB149ZPD1 |
UPC: |
793442149146 |
| Announced: |
November 30, 1999 |
First Shipped: |
November 5, 2001 |
Weight: |
0.837 lbs. |
RAM Mount Top Clamp PDA Zinc U-Bolt Mount Alternative Models |
RAM Mount Top Clamp PDA Zinc U-Bolt Mount |
RAM Mount Universal Clamp PDA Stainless Steel U-Bolt Mount |
RAM Mount RAP-B-149-PD1 | | | |
|
Manufacturer Description |

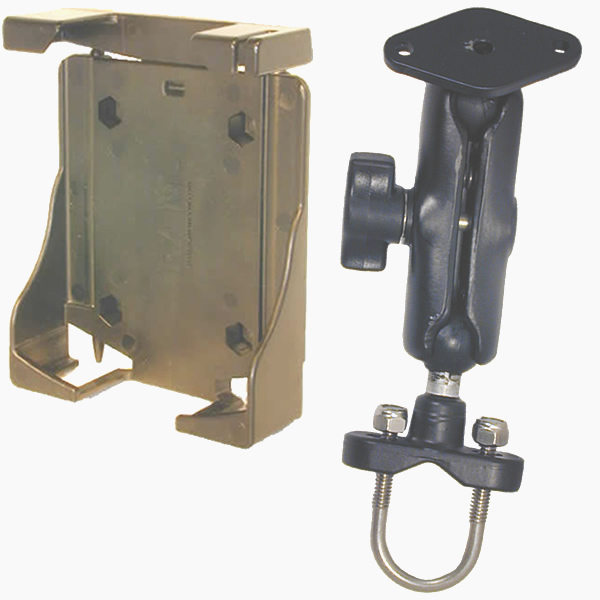

The RAM Marine Grade Aluminum Mount with Zinc Coated U-Bolt Rail Base consists of the 1'' dia. ball and socket system with RAM Universal Top Clamping Plastic Cradle for PDA Units.
BASE DESIGN:
 The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.
ARM DESIGN:
The Powder Coated Marine Grade Aluminum Standard Length Double Socket Arm is 3.0'' long when measured between socket centers.
CRADLE DESIGN:
 The RAM-HOL-PD1 RAM Mount high strength plastic top clamping cradle is designed to hold a large amount of different kinds of electronic devices, especially PDAs. For a layout of the dimensions RAM-HOL-PD1 cradle, take a closer look with the RAM-HOL-PD1 Design Drawings (pdf file).
Cradle Dimensions:
- Cradle Height Range: 4.38 to 5.75 inches
- Cradle Maximum Width: 3.39 inches
- Cradle Maximum Thickness: 0.87 inches
|
