See more RAM Mount items. |
| |
| List Price: |
$106.14 |
| Our Price: |
$91.95 |
| You Save: |
$14.19 (13%) |
Availability: |
In Stock.
Ships today, May 29. |
|
| |
| Model: |
RAM Mount Tough Tray II HD Dual Suction Plate Netbook Mount 1.5 Ball |
| Part No: |
RAM-166-1-234-6 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Tough Tray II: In The Box (RAM-234-6)
(2,374 views) | ![RAM Tough Tray II: [1] Spring Installation (RAM-234-6) Video](/g/gps/t/vid/ram234-6-2.jpg "RAM Tough Tray II: [1] Spring Installation (RAM-234-6) Video")
RAM Tough Tray II: [1] Spring Installation (RAM-234-6)
(1,510 views) | ![RAM Tough Tray II: [2] Side Arm Adjustment (RAM-234-6) Video](/g/gps/t/vid/ram234-6-3.jpg "RAM Tough Tray II: [2] Side Arm Adjustment (RAM-234-6) Video")
RAM Tough Tray II: [2] Side Arm Adjustment (RAM-234-6)
(1,346 views) | ![RAM Tough Tray II: [3] Using the Tray (RAM-234-6) Video](/g/gps/t/vid/ram234-6-4.jpg "RAM Tough Tray II: [3] Using the Tray (RAM-234-6) Video")
RAM Tough Tray II: [3] Using the Tray (RAM-234-6)
(2,776 views) |
RAM Tough Tray II: Complete Assembly (RAM-234-6)
(4,116 views) |
|
What's Included In The Box? |
The RAM Mount Tough Tray II HD Dual Suction Plate Netbook Mount 1.5 Ball ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Netbook Mounts |
| Model: |
RAM-166-1-234-6 |
SKU: |
RAM166-12346 |
UPC: |
|
| Announced: |
December 7, 2008 |
First Shipped: |
March 17, 2009 |
Weight: |
2.802 lbs. |
Manufacturer Description |

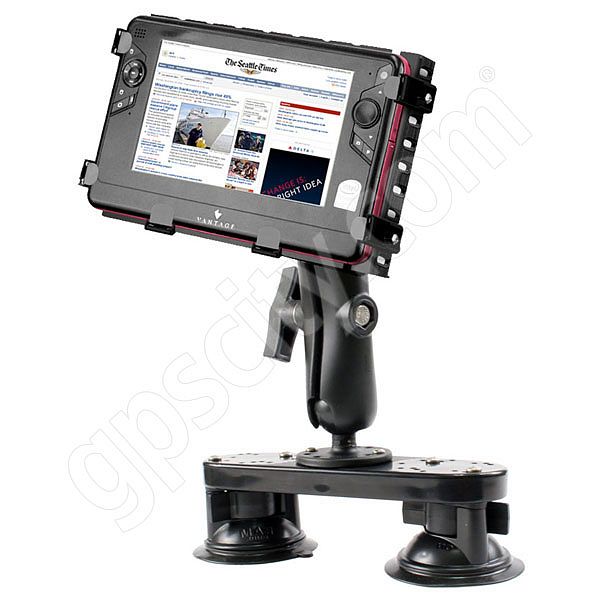

The RAM-166-1-234-6 Universal Tough Tray II HD Series Windshield Dual Suction Plate Mount is a Marine Grade Aluminum Mount with a Dual Locking Suction Cup Aluminum Base and a RAM Universal Netbook Laptop and Tablet Cradle. The heavy duty mount is designed with the RAM 1.5 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Tough Tray II Series mount to your optimum viewing position. The 1.5 inch ball size is designed to hold a 5 to 10 lb. (approximate) weighted device.
Netbook/Tablet Tough Tray II Mounting Options:
 To help ensure you have the Universal Netbook/Tablet Tough Tray II mounting system you require, take a look at the list of available mounts on the RAM-234-6 RAM Universal Netbook/Tablet Tough Tray II cradle and mounts page. Here you can select from suction cup mounts, flat surface screw down mounts, universal car mounts, non skid weighted mounts and more bundled with the RAM-234-6 Universal Netbook Laptop and Tablet Tough Tray II Cradle.
Apple iPad Mount Solutions using the RAM Mount Tough Tray II:
 The RAM Mount Tough Tray II is the ultimate mounting solution for the Apple iPad. The spring loaded tray holds the iPad perfectly while allowing a quick and easy release. With adjustable flat side retaining arms you can obtain a customized hold on the iPad by keeping all ports exposed for use. For a list for popular Apple iPad mounts, take a look at the Apple iPad Mount Page.
Netbook/Tablet Tough Tray II Mount Cradle Design:
 The RAM-234-6 universal netbook laptop and tablet Tough Tray II cradle is designed to hold a large amount of different kinds of netbooks, small laptops, tablets, Apple iPad, DVD players and other similarly shaped devices. The RAM Tough Tray II is a spring loaded expandable tray which includes four (4) flat side clamping retaining arms and four (4) standard retaining arms. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of electronic devices and the freedom of not blocking ports or drives.
Netbook/Laptop Mount Tough Tray II Dimensions:
- Tray Depth: 6.0 inches
- Tray Thickness: 1.0 inch
- Tray Width (Expansion): 8.56 to 12.31 inches
- Side Clamp Arm Height: 2.75 inches (max)
Note: The Dell Inspiron mini 9 Laptop / Netbook (8.9 inch screen), the Dell Inspiron mini 10 Netbook (10.1 inch screen) and Dell Inspiron mini 12 Laptop / Netbook (12.1 inch screen) will work perfectly with this netbook/mini laptop mount.
Netbook/TabletTough Tray II Mount Cradle Plate: The RAM-202 Marine Grade Aluminum Round Plate is designed to connected to the back of the mount cradle with a AMPS hole pattern. The round plate has a 1.5 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1.5 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.5 inch rubber ball location, take a closer look with the RAM-202 Design Drawings (pdf file).
Netbook/TabletTough Tray II Mount Arm Design:
 The RAM-201 RAM Mount Dual Socket Arm is a 1.5 inch C size Ball Socket Arm made of Marine Grade Aluminum. The arm is 4.63 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-201 arm, take a closer look with the RAM-201 Design Drawings (pdf file).
Netbook/TabletTough Tray II Mount Base Design:The RAM-224-111 RAM Mount Dual Locking Suction Cup Base with integrated 1.5 inch diameter ball consists of a Marine Grade Aluminum Plate with a RAM Locking Suction Cup Base at each end. This base has a suction grip which allows you to mount this system to any non-porous surface, like a windshield, with confidence.
|
Features & Tips |
Here is a listing we have put together of some of the common Tough Tray II HD Dual Suction Plate Netbook Mount 1.5 Ball features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Universal spring loaded RAM Tough Tray II. Designed for:
- Netbook Mounts
- mini Laptop Mounts
- Large Ultra Mobile PC (UMPC) Mounts
- Tablet Mounts
- Portable DVD Player Mounts
- Other similarly shaped device mounts.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum and Plastic and Rubber Locking Suction Cup.
- Mount Ball Size: RAM 1.5 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1.5 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1.5 inch Sockets.
- Arm Length: Standard length of 4.63 inches between socket centers.
- Base Type: Dual Round 3.25 inch diameter Locking Suction Cups for non-porous surfaces
- Common Applications:
- Vehicle Mounts: Attaching to vehicle windshield.
- Aviation Mounts: Attaching to windshield.
|
