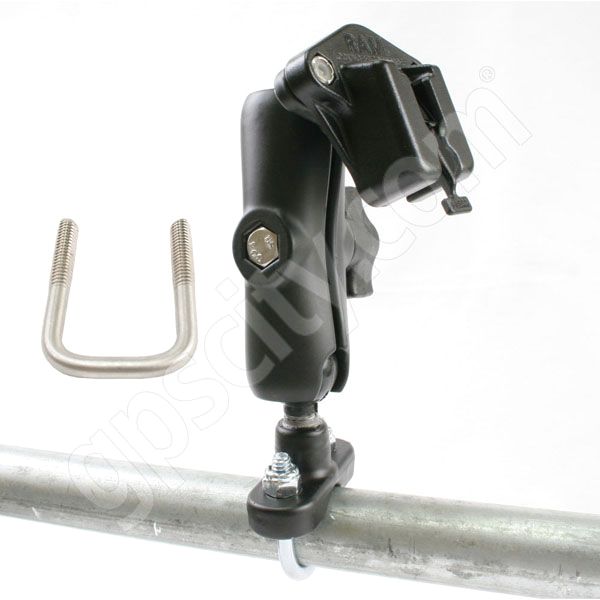

RAM Mount RAM-B-149ZS-304 Aluminum Round and Square U-Bolt Mount with Belt Button Clip Holder


RAM Mount U-Bolt Rail Mount with Belt Button Clip
Customer Images
Share your images and get a
free gpscity.com t-shirt!
Customer Rating: (based on 1 reviews).    Email:  Email the RAM Mount U-Bolt Rail Mount with Belt Button Clip page     Print:  Print the RAM Mount U-Bolt Rail Mount with Belt Button Clip page
See more RAM Mount items.

List Price: $43.91
Our Price: $35.95 (and this item ships for $3.49)
You Save: $7.96 (18%)

Availability:

In Stock.
Ships today, February 15.


Qty:

Model: RAM Mount U-Bolt Rail Mount with Belt Button Clip
Part No: RAM-B-149ZS-304
Condition: Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses)
Price Match: Get an Instant Price Match in about 5 minutes (during business hours).

Learn More with our Instructional Videos   (More GPS City videos. Visit our Youtube channel.)
RAM Diamond Plate: Overview (RAM-B-238U) Video
RAM Diamond Plate: Overview (RAM-B-238U)
(20,301 views)
RAM AMPS Hole Pattern: Explained Video
RAM AMPS Hole Pattern: Explained
(6,618 views)
RAM Mount Plate: Overview (RAM-B-347) Video
RAM Mount Plate: Overview (RAM-B-347)
(3,933 views)
RAM Medium Arm: Overview (RAM-B-201U) Video
RAM Medium Arm: Overview (RAM-B-201U)
(20,647 views)
RAM Motorcycle U-Bolt Base: On Suzuki (RAM-B-231ZU) Video
RAM Motorcycle U-Bolt Base: On Suzuki (RAM-B-231ZU)
(22,672 views)

RAM Mount Sub-Component Breakdown
Here are the sub-component parts that make up this item:

Standard Belt Clip with Diamond Plate RAP-304U
+
Diamond Plate with 1 inch Ball RAM-B-238U
+
Medium Arm B-Socket RAM-B-201U
+
Zinc U-Bolt Motorcycle Mount Base RAM-B-231ZU
+
Stainless Steel Square U-Bolt RMR-SU2510

What's Included In The Box?

The RAM Mount U-Bolt Rail Mount with Belt Button Clip ships with the following items included:


Product Information
Manufacturer: National Products, Inc Category: All Purpose Mounts Type: Belt Clip Mounts
Model: RAM-B-149ZS-304 SKU: RAMB149ZS-304 UPC:
Announced: October 1, 2007 First Shipped: October 1, 2007 Weight: 0.737 lbs.

RAM Mount U-Bolt Rail Mount with Belt Button Clip Description
The RAM-B-149Z-304 Marine Grade Aluminum Handlebar and Rail Zinc Coated U-Bolt Mount, consists of the 1 inch diameter ball and socket system with RAM Plastic Belt Clip Button Holder for the all devices with a standard round belt button knob, including Golf Course GPS, Cell Phones, Smart Phones, GPS Units and more. The mount includes two U-Bolts for different shaped rails. One will connect to a round rail up to 1.0 inch diameter and the other will allow you to mount to a square or rectangle pole 0.75 to 1.0 inch sides.

Golf Course GPS Mount Cradle Design:

The RAP-304 RAM Mount High Strength Plastic Holder is designed to connect to a standard plastic button knob found on the back of many Golf Course GPS, Cell Phones, GPS Units, Music Players and more.

Golf Course GPS Mount Cradle Plate:


The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).

Golf Course GPS Mount Arm Design:


The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).

Golf Course GPS Mount Base Design:


The RAM-B-231Z-319 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch. Also included with this base is a RAM Square Stainless Steel U-Bolt. The square u-bolt allows the base to connect to a square rail or post up to 1 inch wide. This is a perfect solution for GPS Mounting on a Golf Course Buggy. The two different u-bolts in this package offer a solution not matter what the post shape.

To mount the rail base, place the top of the base on the rail and then slide the u-bolt, with adapter, around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.


RAM Mount U-Bolt Rail Mount with Belt Button Clip Features & Tips
Here is a listing we have put together of some of the common

U-Bolt Rail Mount with Belt Button Clip features

, along with a few user tips that you may find of help for this particular item.
  • Warranty: Manufacturer's Life Time Warranty.
  • Cradle Design: Standard belt knob button holder.
  • Cradle Material: Black High Strength Composite Plastic.
  • Mount Material: Black Powder Coated Marine Grade Aluminum.
  • Mount Ball Size: RAM 1 inch Solid Rubber Ball.
  • Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
  • Arm Type: RAM Arm with Dual 1 inch Sockets.
  • Arm Length: Standard length of 3 inches between socket centers.
  • Base Type: Round (0.75 to 1 inch wide) and Square (up to 1 inch wide) Universal Round Pipe Base.
  • Common Applications:
    • Golf Buggy Mounts: Attaching to the golf buggy frame work.
    • General Mounts: Attaching to available pipes or poles.
