RAM Mount Universal Cradle Screw Down Mount RAM-120U |
| Part No: |
RAM-120U (also RAM-120) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
| Learn More with our Instructional Videos (More GPS City videos.
Visit our Youtube channel.) |
RAM Universal Grip Cradle Large: Assembly (RAM-120B)
(765 views) |
RAM Round Plate: Overview (RAM-202U)
(3,470 views) |
RAM AMPS Hole Pattern: Explained
(6,618 views) |
RAM Mount Plate: Overview (RAM-B-347)
(3,933 views) |
See More Videos:
GPS City Video Page
 |
|
| What's Included In The Box? |
The RAM Mount Universal Cradle Screw Down Mount RAM-120U ships with the following items included: |
| Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Universal Mounts |
| Model: |
RAM-120U |
SKU: |
RAM120 |
UPC: |
793442001208 |
| Announced: |
November 30, 1999 |
First Shipped: |
February 28, 2002 |
Weight: |
1.947 lbs. |
| RAM Mount Universal Cradle Screw Down Mount RAM-120U Description |

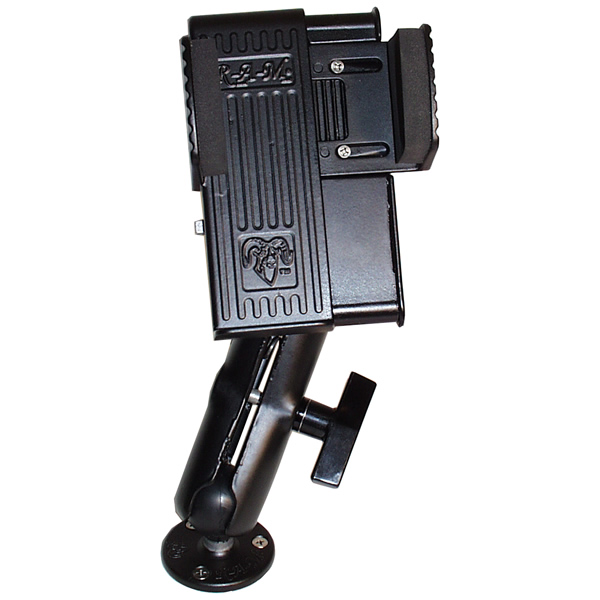

The RAM-120U Universal Cradle RAM Mount is a Marine Grade Aluminum Mount with a Flat Surface Screw Down Base and RAM Side Clamping Aluminum Cradle. The mount is designed with a RAM 1.5 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. The 1.5 inch diameter C size ball and socket system give the mount an approximate holding weight of up to 10 lbs. With a twist of the arm knob, you can move the Universal Cradle Mount to your optimum viewing position.
Universal Mount Options:
 To help ensure you have the Universal Mount you require, take a look at the list of available RAM-120B Universal Clamping Cradle Mounts Page. Here you can select from suction cup universal mounts, flat surface screw down universal mounts, universal car mounts, non skid weighted universal mounts and more bundled with the RAM-120B Universal Clamping Cradle. Alternatively, you can review the complete list of RAM universal cradles and mounts.
Universal Mount Cradle Design:
 The RAM-120BU RAM Mount Large Marine Grade Aluminum Side Clamping Cradle is designed to hold a large amount of different kinds of electronic devices. The cradle is constructed with a 1.5 inch diameter C size ball built into the cradle backing for connecting to the mounts arm socket.
Using the Universal Cradle:
This cradle has padded locking side clamps that close tightly on the item you want to hold. To release the clamp grip, simply press the button found at the bottom left side of the cradle which will spring the clamps open. At the base of the cradle is a small support edge to hold the bottom of the item securely in the cradle. This RAM universal side clamping cradle is designed to be used in a closed cabin, low vibration environment. This system is not recommended as a motorcycle mount.
Universal Cradle Dimensions:
- Minimum Clamp Width: 1.5 inches (with foam), 2.43 without (without foam)
- Maximum Clamp Width: 3.5 inches (with foam), 4.5 inches (without foam)
- Side Clamp Height: 2.62 inches
- Side Clamp Depth: 1.38 inches
- Cradle Spine Height: 6.5 inches
NOTE: The top of the cradle is open, so the device in the cradle can be larger than the height of the cradle. For a layout of the cradle dimensions and design, take a closer look with the RAM-120B Universal Cradle Design Drawings (pdf file).
Universal Mount Arm Design:
 The RAM-201 RAM Mount Dual Socket Arm is a 1.5 inch C size Ball Socket Arm made of Marine Grade Aluminum. The arm is 4.63 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-201 arm, take a closer look with the RAM-201 Design Drawings (pdf file).
Universal Mount Base Design:
 The RAM-202 RAM Mount Marine Grade Aluminum Screw Down Plate has a 1.5 inch diameter rubber ball connected at right angles to a 2.5 inch diameter plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the RAM-202 plate dimensions, take a closer look with the RAM-202 Design Drawings (pdf file).
Note: Mounting hardware is NOT included with the purchase of the RAM-202.
|
| RAM Mount Universal Cradle Screw Down Mount RAM-120U Features & Tips |
Here is a listing we have put together of some of the common Universal Cradle Screw Down Mount RAM-120U features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Universal Side Clamping Cradle.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1.5 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1.5 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1.5 inch Sockets.
- Arm Length: Standard length of 4.63 inches between socket centers.
- Base Type: Round 2.5 inch diameter plate design to be bolted to a flat surface.
- Common Applications:
- Vehicle Mounts: Attaching to vehicle dash or console with hardware.
- Marine Mounts: Attaching to small ledge or flat surface.
- Motorcycle Mounts: Attaching to small ledge or flat surface on motorcycle console.
|
