| Model: |
RAM Mount Universal Finger Grip ATV UTV Strap Mount |
| Part No: |
RAM-B-149Z-2-UN4 (also RAM-B-149Z-UN4) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Universal Cradle: In the Box (RAM-HOL-UN4U)
(4,069 views) |
RAM Universal Cradle: Assembly (RAM-HOL-UN4U)
(3,109 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,627 views) |
RAM AMPS Hole Pattern: Explained
(8,035 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views) |
|
What's Included In The Box? |
The RAM Mount Universal Finger Grip ATV UTV Strap Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Universal Mounts |
| Model: |
RAM-B-149Z-2-UN4 |
SKU: |
RAMB149Z-2UN4 |
UPC: |
793442905612 |
| Announced: |
January 1, 2007 |
First Shipped: |
January 1, 2007 |
Weight: |
1.276 lbs. |
Manufacturer Description |

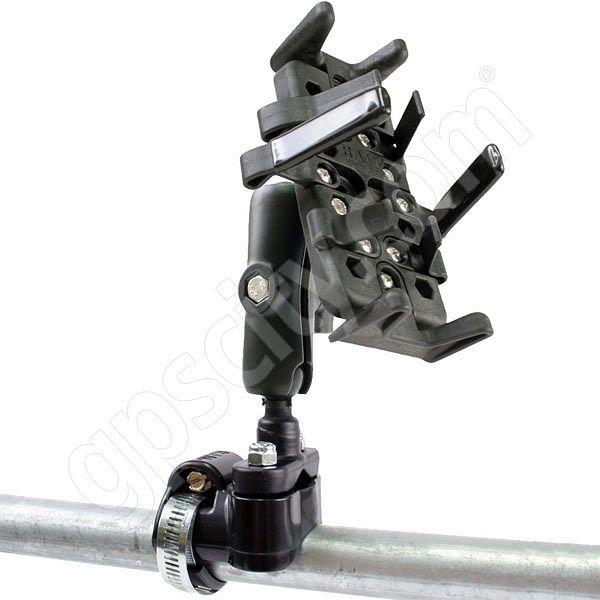

The RAM-B-149Z-2-UN4 Universal Finger Grip ATV and UTV RAM Mount is a Marine Grade Aluminum Mount with a Steel Clamp Strap Base and and RAM Universal Finger Grip Side Clamping Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the RAM Universal Finger Grip Cradle mount to your optimum viewing position.
Universal Cradle Mount Options:
 To help ensure you have the Universal Mount you require, take a look at the list of available RAM universal Finger Grip clamping cradle mounts on the RAM-HOL-UN4 Finger Grip Series of universal cradles and mounts Page. Here you can select from suction cup universal mounts, flat surface screw down universal mounts, universal car mounts, non skid weighted universal mounts and more bundled with the RAM-HOL-UN4 Universal Finger Grip Series Cradle. Alternatively, you can review the complete list of RAM universal cradles and mounts.
Universal Cradle Cradle Design:
 The RAM-HOL-UN4 Plastic Finger Grip RAM Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices, including the Blackberry range of Phones.
Using the Cradle:
This cradle has four (4) rubber coated fingers placed along sides to grip any device you need to hold. The fingers open by squeezing the ''peg'' ends to open the small finger arms. The bottom of the cradle includes a holding plate that adds support to the device being held by the mount.
Universal Cradle Dimensions:
- Using Short Arm Side Clamps:
- Maximum Depth: 0.75 inches
- Minimum Width: 1.25 inches
- Maximum Width: 3.0 inches
- Using Medium Arm Side Clamps:
- Maximum Depth: 1.25 inches
- Minimum Width: 1.5 inches
- Maximum Width: 3.5 inches
- Using Long Arm Side Clamps:
- Maximum Depth: 1.6 inches
- Minimum Width: 2.25 inches
- Maximum Width: 3.5 inches
- Spine Plate Dimensions: 2.5W x 5.0H inches
- Minimum Height (with Top and Bottom Plates): 5.25 inches *
- Maximum Heigth (with Top and Bottom Plates): 6.0 inches *
* The top and bottom plates can be removed for larger devices.
Universal Cradle Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Universal Cradle Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Universal Cradle Mount Base Design:
 The RAM-B-231-2 Marine Grade Aluminum Utility Strap Clamp Base has a 1.0 inch diameter Rubber Ball connected at right angles. The Strap Base tightening screw is encased in a compact housing for a clean, safe finish. The strap is long enough to wrap around handle bar posts found on most ATV, UTV, Snowmobiles, Motorcycles and any other applications you can think of.
Strap Dimensions: 1.57'' (40mm) to a maximum of 3.15'' (80mm).
|
Features & Tips |
Here is a listing we have put together of some of the common Universal Finger Grip ATV UTV Strap Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Universal Finger Grip Cradle.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Zinc Coated U-Bolt. (0.75 to 1 inch wide)
- Common Applications:
- ATV and UTV Mounts: Attaching to handlebars.
- Motorcycle Mounts: Attaching to handlebars.
- Snowmobile Mounts: Attaching to handlebars.
- General Mounts: Attaching to available pipes or poles.
|
