| Model: |
RAM Mount Universal Finger Grip Cessna Rail Post Mount |
| Part No: |
RAM-B-131-UN4 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
| Learn More with our Instructional Videos (More GPS City videos.
Visit our Youtube channel.) |
RAM Universal Cradle: In the Box (RAM-HOL-UN4U)
(3,338 views) |
RAM Universal Cradle: Assembly (RAM-HOL-UN4U)
(2,697 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(20,301 views) |
RAM AMPS Hole Pattern: Explained
(6,618 views) |
RAM Mount Plate: Overview (RAM-B-347)
(3,933 views) |
|
| What's Included In The Box? |
The RAM Mount Universal Finger Grip Cessna Rail Post Mount ships with the following items included: |
| Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Universal Mounts |
| Model: |
RAM-B-131-UN4 |
SKU: |
RAMB131UN4 |
UPC: |
793442909429 |
| Announced: |
March 1, 2008 |
First Shipped: |
March 1, 2008 |
Weight: |
1.550 lbs. |

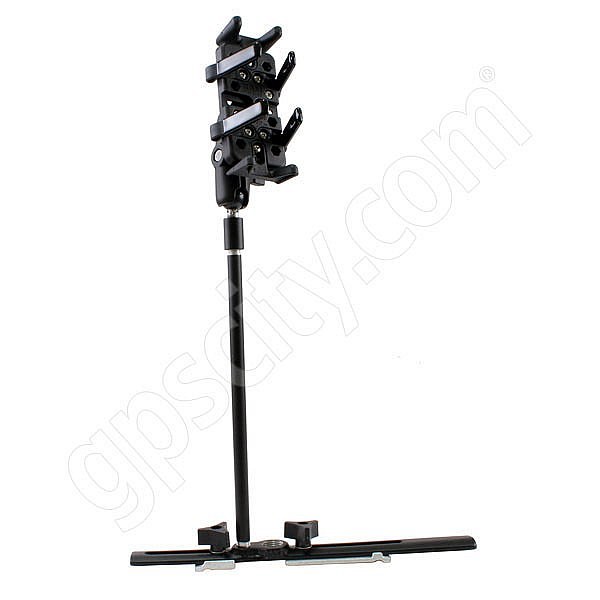

| RAM Mount Universal Finger Grip Cessna Rail Post Mount Description |
The RAM-B-131-UN4 Universal Finger Grip Cessna Seat Rail Aviation Mount is a Marine Grade Aluminum Mount with a RAM Universal Cradle. The mount is designed with a RAM 1 inch diameter RAM ball and socket system on a 12 inch long aluminum rigid pipe. With a twist of the arm knob, you can move the top of Universal Finger Grip mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
Universal Mount Options:
 To help ensure you have the Universal Mount you require, take a look at the list of available RAM universal Finger Grip clamping cradle mounts on the RAM-HOL-UN4 Finger Grip Series of universal cradles and mounts Page. Here you can select from suction cup universal mounts, flat surface screw down universal mounts, universal car mounts, non skid weighted universal mounts and more bundled with the RAM-HOL-UN4 Universal Finger Grip Series Cradle. Alternatively, you can review the complete list of RAM universal cradles and mounts.
Universal Mount Cradle Design:
 The RAM-HOL-UN4 Plastic Finger Grip RAM Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices, including the Blackberry range of Phones.
Using the Cradle:
This cradle has four (4) rubber coated fingers placed along sides to grip any device you need to hold. The fingers open by squeezing the ''peg'' ends to open the small finger arms. The bottom of the cradle includes a holding plate that adds support to the device being held by the mount.
Universal Cradle Dimensions:
- Using Short Arm Side Clamps:
- Maximum Depth: 0.75 inches
- Minimum Width: 1.25 inches
- Maximum Width: 3.0 inches
- Using Medium Arm Side Clamps:
- Maximum Depth: 1.25 inches
- Minimum Width: 1.5 inches
- Maximum Width: 3.5 inches
- Using Long Arm Side Clamps:
- Maximum Depth: 1.6 inches
- Minimum Width: 2.25 inches
- Maximum Width: 3.5 inches
- Spine Plate Dimensions: 2.5W x 5.0H inches
- Minimum Height (with Top and Bottom Plates): 5.25 inches *
- Maximum Heigth (with Top and Bottom Plates): 6.0 inches *
* The top and bottom plates can be removed for larger devices.
Universal Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Universal Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Universal Mount Pipe Design:The RAM-PA5412 RAM Mount Rigid Aluminum Post consists of a 12 inch long pipe with 0.25 inch NPT threaded ends. One end screws into the mount base, and the other to a RAM 1.0 inch ball on 0.25 inch NPT female post.
Universal Mount Base Design:The RAM-B-131B RAM Mount Cessna Aircraft Seat Rail Base is a thin rail to mount either a 0.5 or 0.25 inch NPT threaded pipe. The base includes two rail connecting bolts to mount to the exiting seat rails in the aircraft.
|
| RAM Mount Universal Finger Grip Cessna Rail Post Mount Features & Tips |
Here is a listing we have put together of some of the common Universal Finger Grip Cessna Rail Post Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Universal Finger Grip Cradle.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3.0 inches between socket centers.
- Post Length: 12 inch Aluminum Pipe.
- Base Type: Cessna Seat Rail Aviation Mount to be bolted into existing railing (no drill required).
- Common Applications:
- Aviation Mounts: Attaching to seat rail bolts on a Cessna Plane.
|
