Product Detail & Documentation (all files in PDF format)
Manufacturer
RAM Mount
Category
Universal Mounts
Model
RAM-B-174-UN4U
SKU
RAMB174UN4
Weight
1.183 lbs.
Share this item:
Need Assistance? We're here to help. (That's the GPS City Difference!)
For quick help selecting the right GPS unit, try our
GPS Selector Tool,
check specifications, or
compare GPS units. If you have a specific question about an
item, try entering your question using the
Q&A (Questions & Answers) section above - we usually respond on the same or next day. During our office hours 8AM - 5PM PDT, Mon-Fri, you can contact us using
, or reach us by phone at 1-866-GPS-CITY.
What's Included With The RAM Mount Universal Finger Grip Cradle on Motorcycle Brake Mount? The RAM Mount Universal Finger Grip Cradle on Motorcycle Brake Mount ships with the following items included:

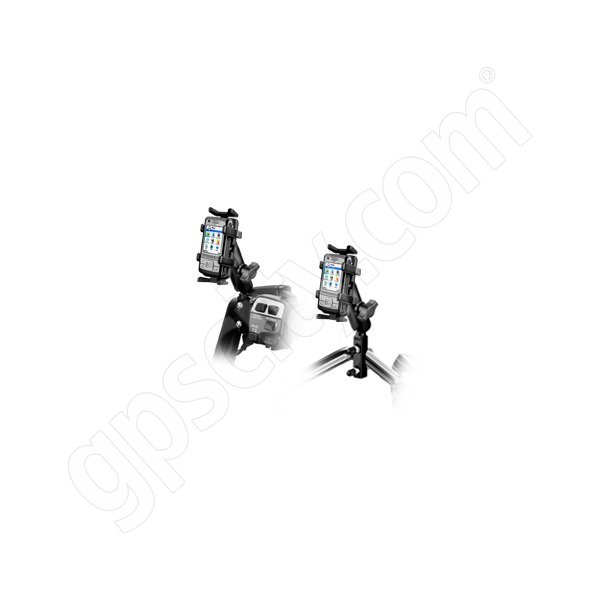

RAM Mount Universal Finger Grip Cradle on Motorcycle Brake Mount Description The RAM-B-174-UN4 RAM Mount Marine Grade Aluminum Motorcycle Brake/Clutch Base Mount consists of the 1 inch diameter RAM ball and socket system with RAM Plastic Universal Finger Grip Side Clamping Cradle.
Mount Cradle Design:

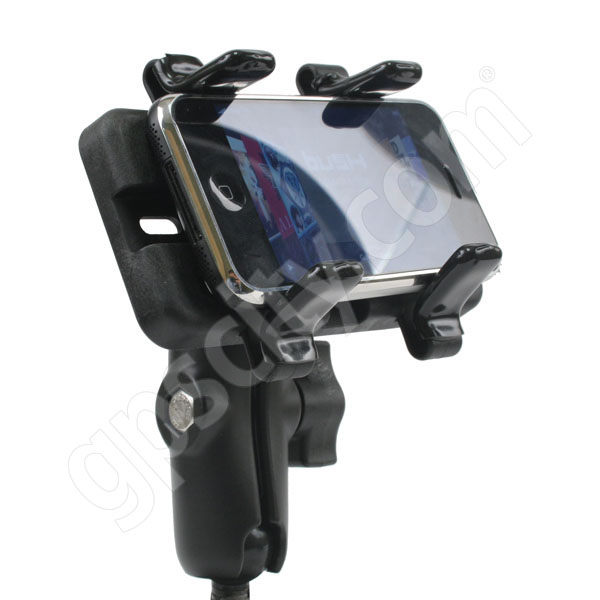

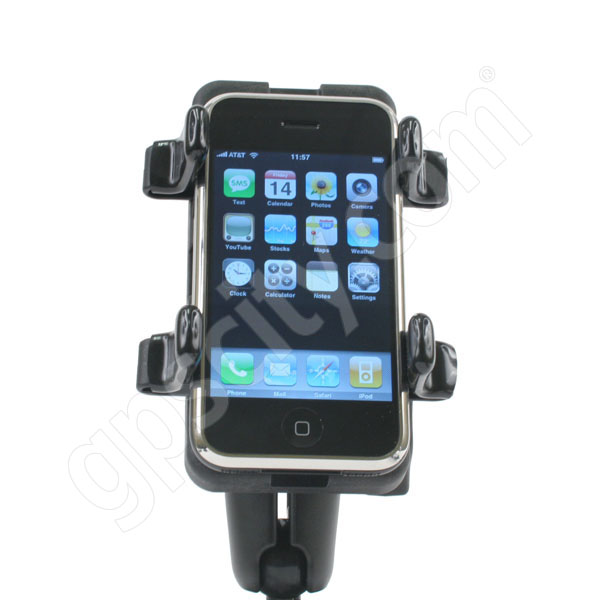

The RAM-HOL-UN4 Plastic Finger Grip RAM Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices, including the Blackberry range of Phones.

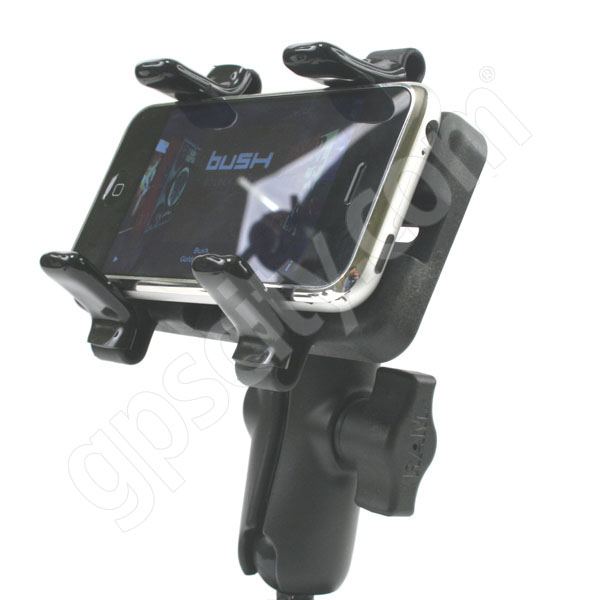

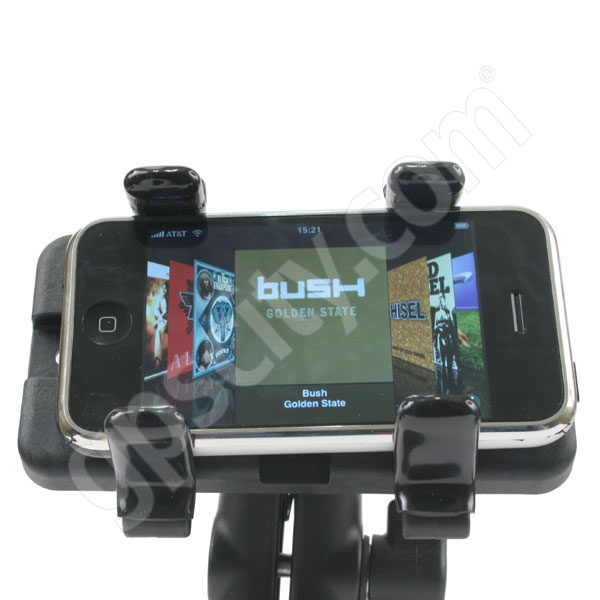

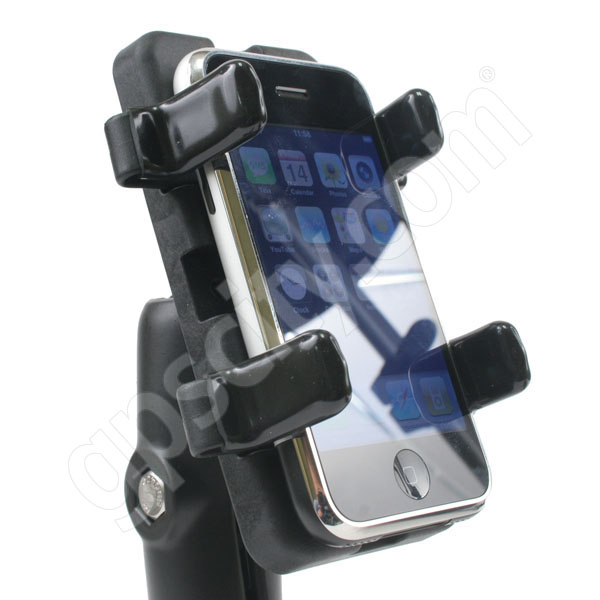

Using the Cradle: This cradle has four (4) rubber coated fingers placed along sides to grip any device you need to hold. The fingers open by squeezing the ''peg'' ends to open the small finger arms. The bottom of the cradle includes a holding plate that adds support to the device being held by the mount.
Universal Cradle Dimensions:
Using Short Arm Side Clamps:
Maximum Depth: 0.75 inches
Minimum Width: 1.25 inches
Maximum Width: 3.0 inches
Using Medium Arm Side Clamps:
Maximum Depth: 1.25 inches
Minimum Width: 1.5 inches
Maximum Width: 3.5 inches
Using Long Arm Side Clamps:
Maximum Depth: 1.6 inches
Minimum Width: 2.25 inches
Maximum Width: 3.5 inches
Spine Plate Dimensions: 2.5W x 5.0H inches
Minimum Height (with Top and Bottom Plates): 5.25 inches *
Maximum Heigth (with Top and Bottom Plates): 6.0 inches *
* The top and bottom plates can be removed for larger devices.
Mount Arm Design: The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
Mount Base Design:
The RAM-B-309-1 RAM Mount Powder Coated Marine Grade Aluminum Clutch/Brake Motorcycle Mount Base includes a 1 inch diameter Rubber Ball and a hexagonal opening for the connection of an optional secondary RAM-B-309-3 Rubber 1 inch diameter ball. Included with this base is both standard and metric mounting bolts.
The base connects to the left or right side of your handlebar clutch/brake reservoir on the Honda Goldwing and other select Motorcycles. To see if this base will work with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94 inches and a maximum of 1.58 inches and can be viewed in the design drawing below.
RAM E-Drawings and In Use Pictures:
To understand more about the RAM-B-309-1 Motorcycle Mount Base hole spacing and ball layout and location, check out the design drawing below. The second image shows the RAM-B-309-1 in use and how the base mounts to the clutch/brake reservoir.
