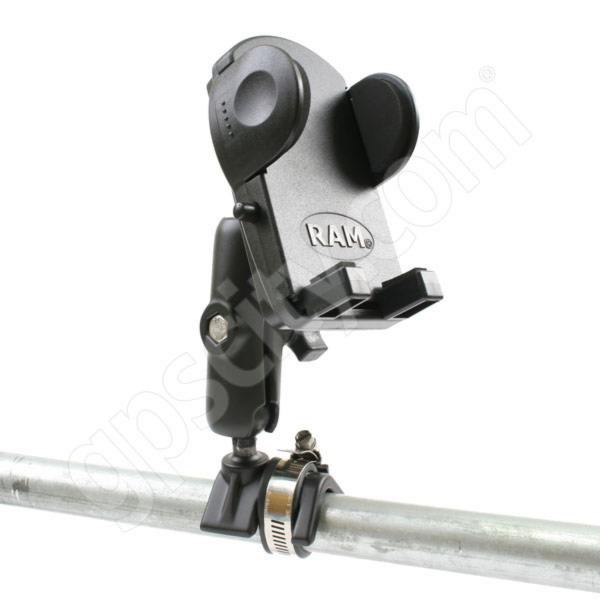

The RAM Marine Grade Aluminum Rail Strap Mount consists of the 1" dia. ball and socket system with RAM Universal Medium Side Clamping Plastic Cradle.
BASE DESIGN:
 The RAM-B-108B RAM Mount Marine Grade Aluminum Rail Strap Mount Base is a clamping rail strap base. The base includes a 6 inch metal strap and an 8 inch long metal strap designed to fit a rail or post with a diameter from 1 to 1.9 inches. When the base is mounted, a 1 inch rubber ball sits at a right angles to the mounting post.
NOTE: The base mounts on round, square or odd shaped posts.
ARM DESIGN:
The Powder Coated Marine Grade Aluminum Standard Length Double Socket Arm is 3.0" long when measured between socket centers.
CRADLE DESIGN:
 The RAM-HOL-UN2 Medium RAM Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices.
Using the Cradle:
This cradle has padded locking side clamps that close tightly on the item you want to hold. To release the clamp hold, simply press the button found at the bottom of the back of the cradle which will spring the clamps open. At the base of the cradle is a small support to hold the bottom of the item securely in the cradle. This RAM universal side clamping cradle is designed to be used in a closed cabin, low vibration environment. This system is not recommended as a motorcycle mount.
Universal Cradle Dimensions:
- Minimum Grip Width: 1.5"
- Maximum Grip Width: 2.6"
- Side Clamp Height: 1.88"
- Side Clamp Depth: 1.13"
- Cradle Spine Height: 3.68"
- Cradle Spine Width: 2.0"
NOTE: The top of the cradle is open, so the items in the cradle can be larger than the height of the cradle.
|
