See more RAM Mount items. |
| |
| List Price: |
$48.28 |
| Our Price: |
$29.95 (and this item ships for $2.99) |
| You Save: |
$18.33 (38%) |
Availability: |
In Stock.
Ships today, May 29. |
|
| |
| Model: |
RAM Mount Universal Medium Cradle Adhesive Snap-Link Mount |
| Part No: |
RAP-SB-178-UN2U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Universal Grip Cradle: In Use (RAM-HOL-UN2)
(1,655 views) |
RAM Universal Grip Cradle: Dimensions (RAM-HOL-UN2)
(796 views) |
Check out our
channel. | | |
|
What's Included In The Box? |
The RAM Mount Universal Medium Cradle Adhesive Snap-Link Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Universal Mounts |
| Model: |
RAP-SB-178-UN2U |
SKU: |
RAPSB178UN2 |
UPC: |
793442910579 |
| Announced: |
January 31, 2008 |
First Shipped: |
January 31, 2008 |
Weight: |
0.444 lbs. |
Manufacturer Description |

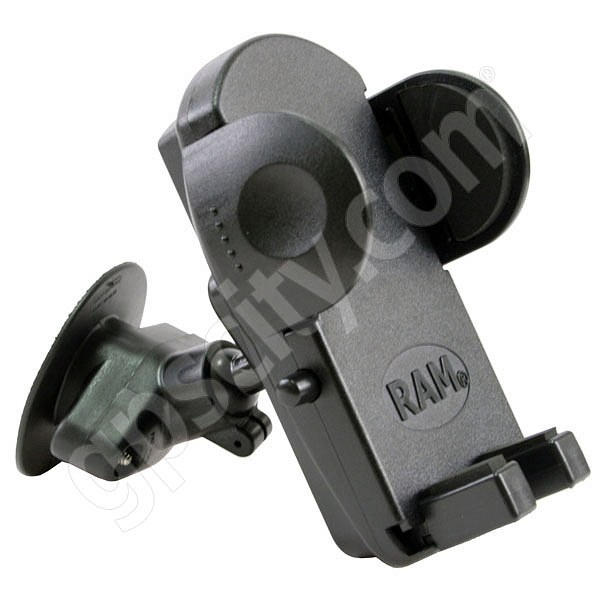

The RAM-SB-178-UN2 Universal Medium Cradle Adhesive RAM Mount is a High Strength Plastic Composite Mount with a PDA Adhesive Base and RAM Custom Plastic Cradle. The mount is designed with a RAM Snap-Link friction ball and socket system that has one adjustment point in the middle of the mount. Once the adhesive base is securely mounted, you can move the Universal Medium Side Clamping Cradle to your optimum viewing position with a simple twist of the mount joint.
Note: This mount does not require any drilling for installation.
Universal Mount Cradle Design:
 The RAM-HOL-UN2 Medium RAM Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices.
Using the Cradle:
This cradle has padded locking side clamps that close tightly on the item you want to hold. To release the clamp hold, simply press the button found at the bottom of the back of the cradle which will spring the clamps open. At the base of the cradle is a small support to hold the bottom of the item securely in the cradle. This RAM universal side clamping cradle is designed to be used in a closed cabin, low vibration environment. This system is not recommended as a motorcycle mount.
Universal Cradle Dimensions:
- Minimum Grip Width: 1.5''
- Maximum Grip Width: 2.6''
- Side Clamp Height: 1.88''
- Side Clamp Depth: 1.13''
- Cradle Spine Height: 3.68''
- Cradle Spine Width: 2.0''
NOTE: The top of the cradle is open, so the items in the cradle can be larger than the height of the cradle.
Universal Mount Arm Design:
 The RAP-SB-192 RAM Mount High Strength Plastic Composite Assembly is a 0.5 inch diameter plastic ball and socket snap-link friction grip system with diamond plate ends. One end of the assembly connects to the back of the cradle, and the other to the diamond plate on the mount base. The snap-link friction grip system relys on the screw tightened socket to grip the solid plastic ball. This ball and socket system should only be used in a low vibration application.
Universal Mount Base Design:
 The RAP-273 RAM Mount High Strength Plastic Adhesive Mount Base is designed to have a semi-permanent hold on a flat or curved surface, like a car dash or car windshield. The mounting base consists of a 2.5 inch diameter flexible base with a RAM Mount RAM-202PSA Adhesive PSA (Pressure Sensitive Adhesive) Disk.
Universal Mount Options:
 To help ensure you have the Universal Mount you require, take a look at the list of available RAM universal medium clamping cradle mounts on the RAM-HOL-UN2 Series of medium universal cradles and mounts Page. Here you can select from suction cup universal mounts, flat surface screw down universal mounts, universal car mounts, non skid weighted universal mounts and more bundled with the RAM-HOL-UN2 Universal Series Cradle. Alternatively, you can review the complete list of RAM universal cradles and mounts.
|
Features & Tips |
Here is a listing we have put together of some of the common Universal Medium Cradle Adhesive Snap-Link Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Universal Medium Side Clamping Cradle.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black High Strength Composite Plastic and PSA Adhesive Disk.
- Mount Ball Size: RAM 0.5 inch Solid Plastic Snap-Link Ball.
- Pivot Point Design: RAM 0.5 inch Solid Plastic Snap-Link Friction Ball and Socket Joint.
- Arm Type: Direct connection between base and cradle plates.
- Base Type: Round Adhesive PSA (Pressure Sensitive Adhesive) Disk.
- Common Applications:
- Vehicle Mounts: Attaching to vehicle dash or console.
|
