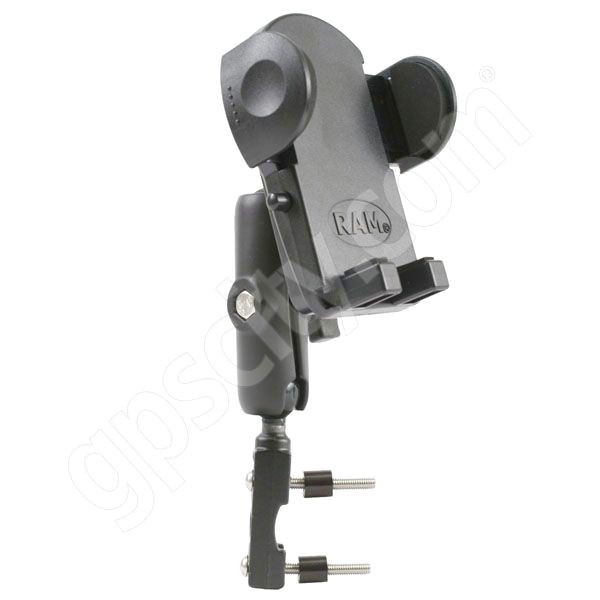

RAM Mount RAM-B-174-UN2U Universal Medium Cradle on Aluminum Motorcycle Brake Mount


RAM Mount Universal Medium Cradle on Motorcycle Brake Mount
Customer Images
Share your images and get a
free gpscity.com t-shirt!
Not yet rated.    Email:  Email the RAM Mount Universal Medium Cradle on Motorcycle Brake Mount page     Print:  Print the RAM Mount Universal Medium Cradle on Motorcycle Brake Mount page
See more RAM Mount items.

List Price: $55.43
Our Price: $43.95
You Save: $11.48 (21%)

Availability:

In Stock.
Ships today, May 29.


Qty:

Model: RAM Mount Universal Medium Cradle on Motorcycle Brake Mount
Part No: RAM-B-174-UN2U (also RAM-B-174-UN2)
Condition: Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses)
Price Match: Get an Instant Price Match in about 5 minutes (during business hours).

Learn More with our Instructional Videos

 » See our list of GPS City videos. Visit our Youtube channel.
RAM Universal Grip Cradle: In Use (RAM-HOL-UN2) Video
RAM Universal Grip Cradle: In Use (RAM-HOL-UN2)
(1,655 views)
RAM Universal Grip Cradle: Dimensions (RAM-HOL-UN2) Video
RAM Universal Grip Cradle: Dimensions (RAM-HOL-UN2)
(796 views)
RAM Diamond Plate: Overview (RAM-B-238U) Video
RAM Diamond Plate: Overview (RAM-B-238U)
(21,627 views)
RAM AMPS Hole Pattern: Explained Video
RAM AMPS Hole Pattern: Explained
(8,035 views)
RAM Mount Plate: Overview (RAM-B-347) Video
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views)

RAM Mount Sub-Component Breakdown

Here are the sub-component parts that make up this item:

Plastic Universal Side Clamping Cradle Medium RAM-HOL-UN2U
+
Diamond Plate with 1 inch Ball RAM-B-238U
+
Medium Arm B-Socket RAM-B-201U
+
Motorcycle Mount Base Kit RAM-B-309-7U

What's Included In The Box?

The RAM Mount Universal Medium Cradle on Motorcycle Brake Mount ships with the following items included:


Product Information

Manufacturer: National Products, Inc Category: All Purpose Mounts Type: Universal Mounts
Model: RAM-B-174-UN2U SKU: RAMB174UN2 UPC:
Announced: January 1, 2007 First Shipped: January 1, 2007 Weight: 1.020 lbs.

Manufacturer Description

The RAM-B-174-UN2 RAM Mount Marine Grade Aluminum Motorcycle Brake/Clutch Base Mount consists of the 1 inch diameter RAM ball and socket system with RAM Plastic Universal Medium Side Clamping Cradle.

Mount Cradle Design:

The RAM-HOL-UN2 Medium RAM Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices.

Using the Cradle:
This cradle has padded locking side clamps that close tightly on the item you want to hold. To release the clamp hold, simply press the button found at the bottom of the back of the cradle which will spring the clamps open. At the base of the cradle is a small support to hold the bottom of the item securely in the cradle. This RAM universal side clamping cradle is designed to be used in a closed cabin, low vibration environment. This system is not recommended as a motorcycle mount.

Universal Cradle Dimensions:
  • Minimum Grip Width: 1.5''
  • Maximum Grip Width: 2.6''
  • Side Clamp Height: 1.88''
  • Side Clamp Depth: 1.13''
  • Cradle Spine Height: 3.68''
  • Cradle Spine Width: 2.0''
NOTE: The top of the cradle is open, so the items in the cradle can be larger than the height of the cradle.

Mount Arm Design:
The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.

Mount Base Design:

The RAM-B-309-7 RAM Mount Motorcycle Kit Base can mount to either the clutch/ brake reservoir or directly to a round handle bar rail. The base is constructed of marine grade aluminum with an integrated 1 inch diameter rubber ball, hardware for rail mounting and both standard and metric mounting bolts for motorcycle reservoir mounting. The zinc coated metal u-bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 1/2 to 1.25 inches.

The base connects to the left or right side of your handlebar clutch/brake reservoir on the Honda Goldwing and other select motorcycles or you can connect directly to your handlebars with the u-bolt hardware. To see if this base will work with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94 inches and a maximum of 1.58 inches.
