Customer Images
Share your images and get a
free gpscity.com t-shirt!
|
Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$54.84 |
| Our Price: |
$40.95 (and this item ships for $4.99) |
| You Save: |
$13.89 (25%) |
Availability: |
In Stock.
Ships today, February 15. |
|
| |
| Model: |
RAM Mount Universal PDA Clamp Screw Down Plate Mount |
| Part No: |
RAM-B-138-PD2U (also RAM-B-138-PD2) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
| Learn More with our Instructional Videos (More GPS City videos.
Visit our Youtube channel.) |
RAM Diamond Plate: Overview (RAM-B-238U)
(20,301 views) |
RAM AMPS Hole Pattern: Explained
(6,618 views) |
RAM Mount Plate: Overview (RAM-B-347)
(3,933 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(20,647 views) |
RAM Rectangular Plate: Comparison Overview
(1,600 views) |
|
| What's Included In The Box? |
The RAM Mount Universal PDA Clamp Screw Down Plate Mount ships with the following items included: |
| Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Universal Mounts |
| Model: |
RAM-B-138-PD2U |
SKU: |
RAMB138PD2 |
UPC: |
793442912191 |
| Announced: |
November 30, 1999 |
First Shipped: |
July 24, 2003 |
Weight: |
0.800 lbs. |
| Alternative Models For This Item |
RAM Mount Universal PDA Clamp Screw Down Plate Mount |
RAM Mount RAP-B-138-PD2 | | | | |
|
| RAM Mount Universal PDA Clamp Screw Down Plate Mount Description |

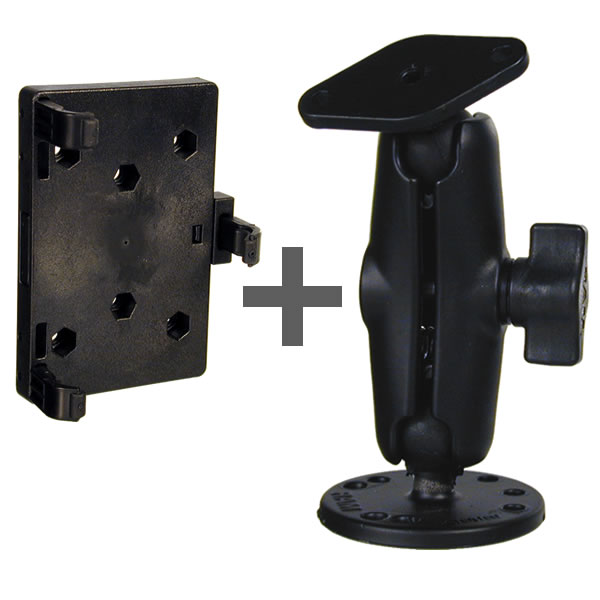

The RAM-B-138-PD2 RAM Mount Marine Grade Aluminum Screw Down Surface PDA Mount consists of the 1 inch diameter ball and socket system with RAM Universal Side Clamping Plastic Cradle for Electronics and PDA Units.
PDA Mount Cradle Design:
 The RAM-HOL-PD2 RAM Mount High Strength Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of electronic devices, like PDAs and Portable Entertainment Systems (Sony PSP).
Cradle Clamping Dimensions:
- Cradle Height Range: Open
- Cradle Holding Width: 2 7/8 - 3.5 inches
- Cradle Holding Thickness: 3/8 - 1 1/8 inches
Included with the Cradle:
The cradle includes three (3) sets of side clamping arms. Each set of arms includes three (3) individual arms which connect to the slots on the side of the cradle. The arms have a rubber tip for an optimum hold, and you can remove and change the arms so you can find the right clamping hold for you device. The arms come in three (3) different lengths:
- Short Arm Length: 1/2 inch
- Medium Arm Length: 7/8 inch
- Long Arm Length: 1 3/16 inches
PDA Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
PDA Mount Base Design:
 The RAM-B-202 RAM Mount Marine Grade Aluminum Screw Down Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 2.5 inch diameter Plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Mount Base Mounting Solutions:Mounting hardware is NOT included with the purchase of the RAM-B-202. A semi-permanent solution for mounting this base is by using the RAM double sided adhesive disk (RAM-202PSA). The disk will hold the RAM-B-202 base in many different locations without screws.
TomTom GPS Mount Options:
To help ensure you have the Electronics and PDA Mount you require, take a look at the list of available RAM electronics and PDA mounts on the Universal Electronics and PDA Mount Page. Here you can select from suction cup electronics mounts, flat surface screw down electronics mounts, electronics car mounts, non skid weighted electronics mounts and more bundled with the RAM-HOL-PD2 Universal Electronics / PDA Side Clamp Cradle.
|
| RAM Mount Universal PDA Clamp Screw Down Plate Mount Features & Tips |
Here is a listing we have put together of some of the common Universal PDA Clamp Screw Down Plate Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Universal Side Clamping Cradle for PDA Devices
- Cradle Material: High Strength Plastic
- Mount Material: Black Powder Coated Marine Grade Aluminum
- Mount Ball Size: RAM 1 inch Solid Rubber Ball
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint
- Arm Type: RAM Arm with Dual 1 inch Sockets
- Arm Length: Standard length of 3 inches between socket centers
- Base Type: Round 2.5 inch diameter Plate design to be bolted to a flat surface
|
