RAM Mount RAM-B-121-304U Aluminum Universal Rail Mount with Belt Button Clip Holder


RAM Mount Universal Rail Mount with Belt Button Clip
Customer Images
Share your images and get a
free gpscity.com t-shirt!
Customer Rating: (based on 3 reviews).    Email:  Email the RAM Mount Universal Rail Mount with Belt Button Clip page     Print:  Print the RAM Mount Universal Rail Mount with Belt Button Clip page
100% of our reviewers recommend this item. See more RAM Mount items.

List Price: $52.94
Our Price: $44.95 (and this item ships for $4.99)
You Save: $7.99 (15%)

Availability:

In Stock.
Ships today, May 29.


Qty:

Model: RAM Mount Universal Rail Mount with Belt Button Clip
Part No: RAM-B-121-304U
Condition: Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses)
Price Match: Get an Instant Price Match in about 5 minutes (during business hours).

Learn More with our Instructional Videos

 » See our list of GPS City videos. Visit our Youtube channel.
RAM Diamond Plate: Overview (RAM-B-238U) Video
RAM Diamond Plate: Overview (RAM-B-238U)
(21,627 views)
RAM AMPS Hole Pattern: Explained Video
RAM AMPS Hole Pattern: Explained
(8,035 views)
RAM Mount Plate: Overview (RAM-B-347) Video
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views)
RAM Medium Arm: Overview (RAM-B-201U) Video
RAM Medium Arm: Overview (RAM-B-201U)
(21,942 views)
RAM Clamp Mount Base with B-Ball (RAM-B-121BU) Video
RAM Clamp Mount Base with B-Ball (RAM-B-121BU)
(2,125 views)

RAM Mount Sub-Component Breakdown

Here are the sub-component parts that make up this item:

Standard Belt Clip with Diamond Plate RAP-304U
+
Diamond Plate with 1 inch Ball RAM-B-238U
+
Medium Arm B-Socket RAM-B-201U
+
Yoke Clamp Base with 1 inch Ball RAM-B-121BU

What's Included In The Box?

The RAM Mount Universal Rail Mount with Belt Button Clip ships with the following items included:


Product Information

Manufacturer: National Products, Inc Category: All Purpose Mounts Type: Belt Clip Mounts
Model: RAM-B-121-304U SKU: RAMB121-304 UPC:
Announced: November 25, 2004 First Shipped: December 20, 2004 Weight: 0.806 lbs.

Manufacturer Description

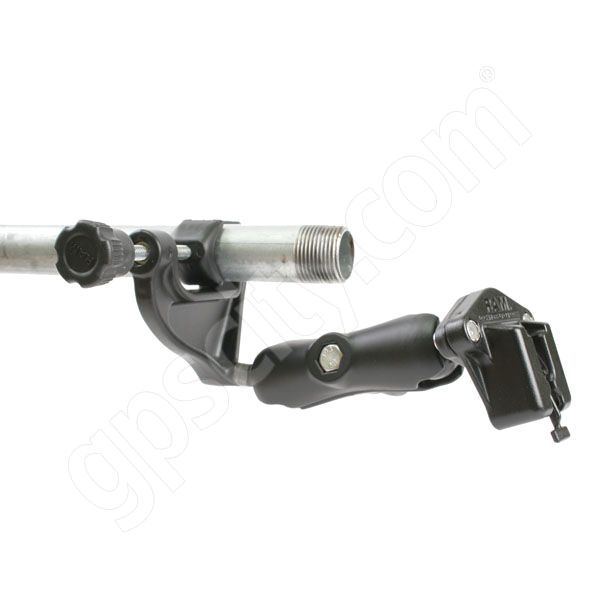

The RAM-B-121-304 Universal Temporary Clamp RAM Mount is a Marine Grade Aluminum Mount with Non-Permanent Clamping Base and RAM Universal Button Clip Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Belt Button mount to your optimum viewing position.

Mount Cradle Design:

The RAP-304 RAM Mount High Strength Plastic Holder is designed to connect to a standard plastic button knob found on the back of many Golf Course GPS, Cell Phones, GPS Units, Music Players and more.

Mount Cradle Plate:


The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).

Mount Arm Design:


The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).

Mount Base Design:


The RAM-B-121B RAM Mount Powder Coated Marine Grade Aluminum Yoke Clamp Mount Base fits a rail diameter from 5/8 inch to a maximum of 1 1/4 inches. The 1 inch rubber ball is at a right angle to the plane of the mount so when connected to a rail, the ball sits parallel to the rail. To mount the base, simply place the yoke clamps around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes and unusual shaped motorbike rails.

NOTE: The rail does not need to be perfectly round to mount this base.

Golf Course GPS Mount:

The Aluminum Yoke Clamp Mount Base will allow you to connect this mount to a golf cart frame as a temporary solution. Simply connect the clamp around any rail on your Golf Cart, and you will be able to mount your Golf Course GPS, including the SkyCaddie GPS , Golflogix GPS and GolfBuddy GPS, in the perfect mounting position for viewing, while keeping the GPS easy to grab when you need it.


Features & Tips

Here is a listing we have put together of some of the common

Universal Rail Mount with Belt Button Clip features

, along with a few user tips that you may find of help for this particular item.
  • Warranty: Manufacturer's Life Time Warranty.
  • Cradle Design: Standard belt knob button holder.
  • Cradle Material: Black High Strength Composite Plastic.
  • Mount Material: Black Powder Coated Marine Grade Aluminum.
  • Mount Ball Size: RAM 1 inch Solid Rubber Ball.
  • Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
  • Arm Type: RAM Arm with Dual 1 inch Sockets.
  • Arm Length: Standard length of 3 inches between socket centers.
  • Base Type: Marine Grade Aluminum Temporary Clamp Base for rail diameter between 0.63 and 1.25 inch.
  • Common Applications:
    • Golf Buggy Mounts: Attaching to the golf buggy frame work.
    • General Mounts: Attaching to available pipes or poles.
