Customer Rating:   (based on 3 reviews). Email:
 Print:
67% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$62.98 |
| Our Price: |
$47.95 (and this item ships for $4.99) |
| You Save: |
$15.03 (24%) |
Availability: |
In Stock.
Ships today, February 14. |
|
| |
| Model: |
RAM Mount Universal Side Clamp PDA Locking Suction Cup Mount |
| Part No: |
RAM-B-166-PD2U (also RAM-B-166-PD2) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
| Learn More with our Instructional Videos (More GPS City videos.
Visit our Youtube channel.) |
RAM Diamond Plate: Overview (RAM-B-238U)
(20,286 views) |
RAM AMPS Hole Pattern: Explained
(6,610 views) |
RAM Mount Plate: Overview (RAM-B-347)
(3,929 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(20,635 views) |
Suction Mount Base: In Use (RAP-224-1U)
(5,335 views) |
|
| Most Popular RAM Mount Universal Side Clamp PDA Locking Suction Cup Mount Accessories
(View all accessories.) |
GPS City Super Grip Dashboard Friction Mount Base
$14.95
|
RAM Mount Black Rose Adhesive Plate for Suction Cups
$5.72
|
RAM Mount Black Large Adhesive Plate for Suction Cups
$4.41
|
RAM Mount Clear Large Adhesive Plate for Suction Cups
$4.41
|
RAM Mount RAM-A-CAN II Vehicle Cup Flat Surface Base
$27.95
|
|
| What's Included In The Box? |
The RAM Mount Universal Side Clamp PDA Locking Suction Cup Mount ships with the following items included: |
| Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Universal Mounts |
| Model: |
RAM-B-166-PD2U |
SKU: |
RAMB166PD2 |
UPC: |
793442912658 |
| Announced: |
November 30, 1999 |
First Shipped: |
July 24, 2003 |
Weight: |
0.901 lbs. |
| Alternative Models For This Item |
RAM Mount RAM-B-148-PD2 |
RAM Mount Universal Side Clamp PDA Locking Suction Cup Mount |
RAM Mount Plastic Universal Side Clamp PDA Suction Cup Mount | | |
| RAM Mount Universal Side Clamp PDA Locking Suction Cup Mount Description |

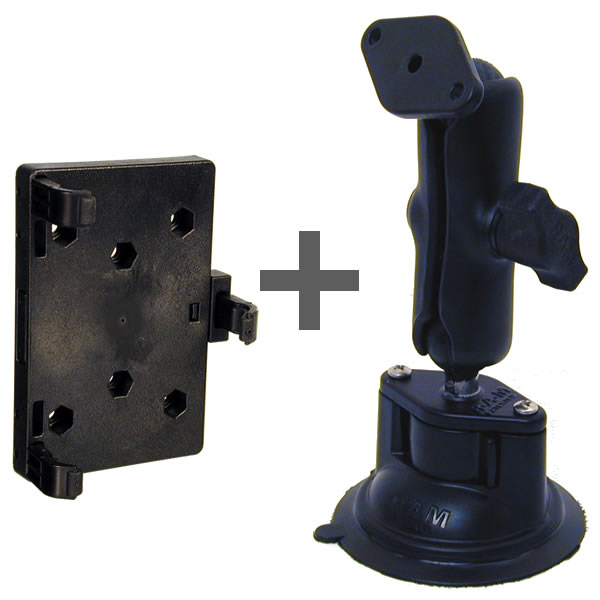

The RAM Marine Grade Aluminum Mount with 3.25'' Locking Suction Base consists of the 1'' dia. ball and socket system with RAM Universal Side Clamping Plastic Cradle for PDA Units.
BASE DESIGN:
 The RAM-B-224-1 RAM Mount Plastic Locking 3.25 inch diameter Rubber Suction Cup Base, with Marine Grade Aluminum Diamond Plate, is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Non Skid Base with Plastic Disk and Plastic Adhesive Disk.
Connected to the top of the Suction Cup is a RAM-B-238 RAM Mount Marine Grade Aluminum Diamond Plate with 1 inch diameter Rubber Ball. This plate allows the suction cup to join to an open socket found on the RAM 1 inch diameter socket arms.
¹ Important legal note to California and Minnesota Drivers
Suction Cup Base Mounting Options:We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
- The Super Grip Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.
- The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.
- The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
ARM DESIGN:
The Powder Coated Marine Grade Aluminum Standard Length Double Socket Arm is 3.0'' long when measured between socket centers.
CRADLE DESIGN:
 The RAM-HOL-PD2 RAM Mount High Strength Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of electronic devices, like PDAs and Portable Entertainment Systems (Sony PSP).
Cradle Clamping Dimensions:
- Cradle Height Range: Open
- Cradle Holding Width: 2 7/8 - 3.5 inches
- Cradle Holding Thickness: 3/8 - 1 1/8 inches
Included with the Cradle:
The cradle includes three (3) sets of side clamping arms. Each set of arms includes three (3) individual arms which connect to the slots on the side of the cradle. The arms have a rubber tip for an optimum hold, and you can remove and change the arms so you can find the right clamping hold for you device. The arms come in three (3) different lengths:
- Short Arm Length: 1/2 inch
- Medium Arm Length: 7/8 inch
- Long Arm Length: 1 3/16 inches
|
