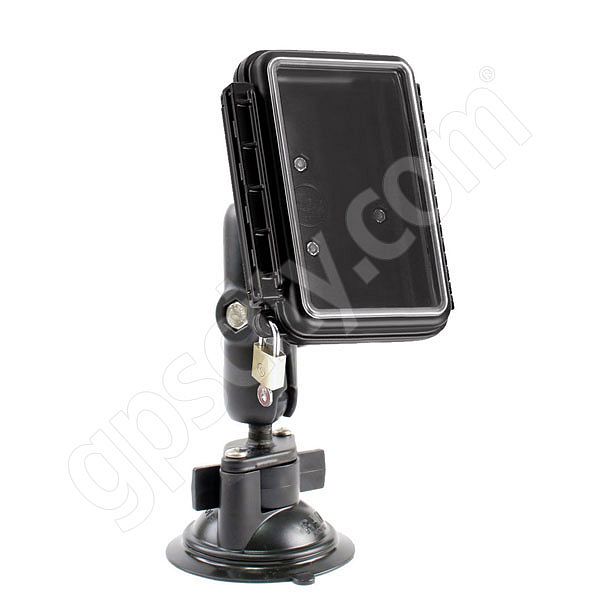

RAM Mount Aluminum Waterproof Wide Aqua Box 6 Locking Suction Cup Mount


RAM Mount Wide Aqua Box 6 Locking Suction Mount
Click to view larger image
Mfg P/N: RAM-B-166-AQ6U
SKU: RAMB166AQ6
 $66.95
List Price:  $78.64
You Save: $11.69 (15%)
Price shown in USD currency

In Stock!
Ships Same Business Day*
(*up to 5:00PM EDT)

This item is Factory New, and has a Lifetime Warranty (excluding electronic or lense components)

Found a lower price? Let us know!

 Canadian Customers!
See this item at gpscity.ca

CHECK OUT THESE POPULAR ACCESSORIES!!
We recommend these more popular accessories for this unit. Buy now and save on shipping costs later!
GPSCITY.COM

Non Skid Nav-Mat for Suction Cup Mount
$19.95

RAM MOUNT

Black Rose Adhesive Plate for Suction Cups
$4.90

RAM MOUNT

Black Large Adhesive Plate for Suction Cups
$4.03

RAM MOUNT

Clear Large Adhesive Plate for Suction Cups
$4.03

GARMIN

Single Large Adhesive Plate for Suction Cups
$4.03

Even MORE ACCESSORIES listed below!!

JUMP TO: (Use these links to quickly jump down to a section of the page)
Accessories
Product Features		 Customer Reviews
What's In The Box?		 Product Videos
Product Tips		 Family Tree
Alternative Units

PRODUCT DETAILS [Back to Top]
The RAM-B-166-AQ6 Waterproof Wide Aqua Box 6 Windshield Suction RAM Mount is a Marine Grade Aluminum Mount with a Locking Suction Cup Base and Universal Plastic RAM Aqua Box for GPS. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Waterproof Wide Aqua Box 6 mount to your optimum viewing position.

Note: This mount does not require any drilling for installation.

Aqua Box Mount Options:

To help ensure you have the Waterproof Aqua Box 6 Medium Wide Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-AQ6 Series of RAM Mount Waterproof Aqua Box 6 Cradles and Mounts Page. Here you can select from suction cup Aqua Box mounts, flat surface screw down Aqua Box mounts, Aqua Box car mounts, motorcycle Aqua Box mounts, ATV and UTV Aqua Box mounts and more bundled with the RAM-HOL-AQ6 Waterproof Aqua Box 6 Medium Wide Cradle.

Aqua Box Mount Cradle Design:

The RAM-HOL-AQ6 RAM Mount High Strength Plastic Aqua Box 6 Wide Medium Cradle is designed to hold a large number of different kinds of electronic devices including the thin touch screen style GPS units. The Aqua Box 6 cradle is a waterproof box with a clear Flex-Lens allowing you to press and operate the buttons of your device, when in the Aqua Box.

The Aqua Box 6 Waterproof Cradle is perfect for holding many small sized electronic devices like:
  • Garmin Nuvi series
  • TomTom ONE series
  • Other similar GPS units
Using the Cradle
The face of the Aqua Box 6 is a door, allowing you to place your electronic device in the cradle. If required, you can lock the box, with a small padlock, once closed. Inside the RAM Aqua Box are padded sheets enabling you to place your electronic device in the box firmly and securely. You can punch out the back of the Aqua Box to allow cables you be connected to you device, while maintaining a waterproof environment.

Aqua Box 6 Internal Dimensions: 4 W x 6 H x 1.75 D inches

Aqua Box Mount Cradle Plate:

The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).

Aqua Box Mount Arm Design:

The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).

Aqua Box Mount Base Design:

The RAM-B-224-1 RAM Mount Plastic Locking 3.25 inch diameter Rubber Suction Cup Base, with Marine Grade Aluminum Diamond Plate, is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Plastic Non Skid Base and Plastic Adhesive Disk.

Connected to the top of the Suction Cup is a RAM-B-238 RAM Mount Marine Grade Aluminum Diamond Plate with 1 inch diameter Rubber Ball. This plate allows the suction cup to join to an open socket found on the RAM 1 inch diameter socket arms.

¹ Important legal note to California and Minnesota Drivers

Suction Cup Base Mounting Options:

We currectly offer two Sub Base Mounting solutions for mounting your suction cup mount in a location other than a windshield.
  1. The Non Skid Base with black 3.5 inch diameter round plastic plate, is a weighted base that can be placed on your dash without and adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.
  2. The Adhesive Disk with black 3.5 inch diameter round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.

PRODUCT FEATURES [Back to Top]
  • Warranty: Manufacturer's Life Time Warranty.
  • Cradle Design: Waterproof Aqua Box for GPS and other standard shaped devices.
  • Cradle Material: Black High Strength Composite Plastic.
  • Mount Material: Black Powder Coated Marine Grade Aluminum and Plastic and Rubber Locking Suction Cup.
  • Mount Ball Size: RAM 1 inch Solid Rubber Ball.
  • Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
  • Arm Type: RAM Arm with Dual 1 inch Sockets.
  • Arm Length: Standard length of 3 inches between socket centers.
  • Base Type: Round 3.25 inch diameter Locking Suction Cup for non-porous surfaces
  • Common Applications:

WHAT'S IN THE BOX? [Back to Top]
1. RAM Mount Aqua Box 1 Large Cradle (RAM-HOL-AQ1U)
2. RAM Mount Round 2.5 inch dia Plate with 1 inch Ball (RAM-B-202U)
3. RAM Mount Standard Length Dual 1.0 inch Socket Arm (RAM-B-201U)
4. RAM Mount Diamond Plate with 1 inch Ball (RAM-B-238U)
5. RAM Mount 3.25 inch dia Locking Suction Cup Base (RAP-224-1U)
