RAM Mount Garmin Lowrance XOG RAM POD1 Vehicle Floor Mount

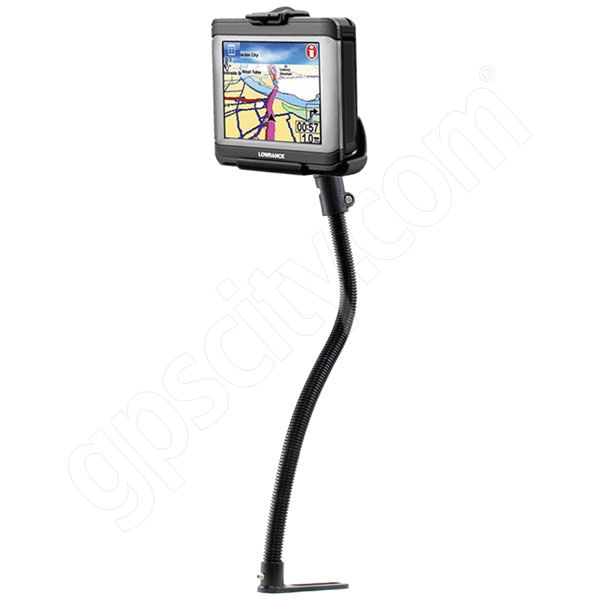

RAM Mount Lowrance XOG Series Vehicle Floor Mount
Click to view larger image
Mfg P/N: RAM-B-316-1-LO8U
SKU: RAMB316-1LO8

Share this item: Facebook DiggDelIcioUs
 $48.95
List Price:  $58.64
You Save: $9.69 (17%)
Price shown in USD currency

In Stock!
Ships today!

Qty:


This item is Brand New (not refurbished), and has a Lifetime Warranty (excluding electronic or lense components)

Found a lower price? Let us know!

 Canadian Customers!
See this item at gpscity.ca


JUMP TO: (Use these links to quickly jump down to a section of the page)
Accessories
Product Features		 Customer Reviews
What's In The Box?		 Product Videos
Product Tips		 Family Tree
Alternative Units



LOWRANCE XOG SERIES VEHICLE FLOOR MOUNT PRODUCT DETAILS
 Back to Top

The RAM-B-316-1-LO8 Lowrance XOG Series Flex Rod Vehicle Floor RAM-POD-I Mount is a Marine Grade Aluminum and Plastic Composite Mount with a RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter RAM ball and socket system on a 18 inch long Aluminum Rigid Flex Rod. With a twist of the arm knob, you can move the top of Lowrance XOG Series mount to your optimum viewing position.

Note: This mount does not require any drilling for installation.

Lowrance GPS Mount Cradle Design:

The RAM-HOL-LO8 RAM Mount High Strength Plastic Cradle is designed to hold the following Lowrance GPS units,
  • Lowrance XOG
All cables can stay connected to the unit while in the RAM cradle.

Lowrance GPS Mount Cradle Plate:

The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).

Lowrance GPS Mount Arm Design:

The RAP-B-200-1 RAM Mount High Strength Plastic Single Socket Short Arm has a B Size 1 inch Ball Socket at one end, and a Female Octagon button connection at the other. The Octagon Button end will mount on the end of the Aluminum Flex Rod, allowing the 1 inch socket to hold your device cradle or plate. The side of the arm includes a tightening knob which allows you to open and close the socket end.

Lowrance GPS Mount Base Design:

The RAM-316-1A RAM Mount Rigid Arm Base consists of a RAM octagon at the end of a 18 inch rigid flex arm with seat rail base. The RAM-POD-I mounting foot plate base is designed to connect to a vehicle seat rail bolt in your Car, Truck, SUV, RV, Big Rig or bolted location. Connected at right angles to the mounting foot is an 18 inch long Aluminum Flexible Rod. This rod can hold light to medium weight items in your vehicle safely and securely. At the top of the rigid flex rod is a male RAM High Strength Plastic Octagon Button that will connect directly to a RAM Female Octagon Button Arm.

Movement of the Rigid 18 inch Flex Arm:

It is important to note that the rigid 18 inch flex arm found on this mount is designed to hold an approximate weight of up to 4 lbs. With this in mind, the aluminum rod is more rigid than flexible. It is designed to be bent into position when being installed and then hold it's position. This means you cannot move the mount around once installed with just one hand.

Lowrance GPS Mount Options:

To help ensure you have the Lowrance XOG GPS Mount you require, take a look at the list of available RAM Lowrance GPS mounts on the Lowrance XOG Mount Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-LO8 Lowrance XOG GPS Cradle.



LOWRANCE XOG SERIES VEHICLE FLOOR MOUNT PRODUCT FEATURES
 Back to Top

  • Warranty: Manufacturer's Life Time Warranty.
  • Cradle Design: Custom Cradle for Lowrance XOG Series.
  • Cradle Material: Black High Strength Composite Plastic.
  • Mount Material: Black Powder Coated Marine Grade Aluminum with Aluminum Rod and High Strength Composite Plastic.
  • Mount Ball Size: RAM 1 inch Solid Rubber Ball.
  • Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
  • Arm Type: RAM Arm with Single 1 inch Socket and Single Octagon Button Socket.
  • Arm Length: Short length of 1.75 inches between socket center and edge.
  • Post Length: 18 inch Aluminum Rod.
  • Base Type: Vehicle Floor Mount to be bolted into existing seat railing.
  • Common Applications:
    • Vehicle Mounts: Attaching to passengers seat rail bolt.



LOWRANCE XOG SERIES VEHICLE FLOOR MOUNT WHAT'S IN THE BOX?
 Back to Top

1. RAM Mount Lowrance XOG Cradle (RAM-HOL-LO8U)
2. RAM Mount Diamond Plate with 1 inch Ball (RAM-B-238U)
3. RAM Mount Plastic Arm with Socket and Button Socket (RAP-B-200-1U)
4. RAM Mount Vehicle Floor Mount with Octagon Button End (RAM-316-1AU)




LOWRANCE XOG SERIES VEHICLE FLOOR MOUNT CUSTOMER REVIEWS
Back to Top

Click here to Add Your Own Review. (It's quick and easy! No login required.)

There are currently no reviews for this product. If you have comments on this product that you would like to share with other users, please feel free to write a quick review using the form below. Thank you!
